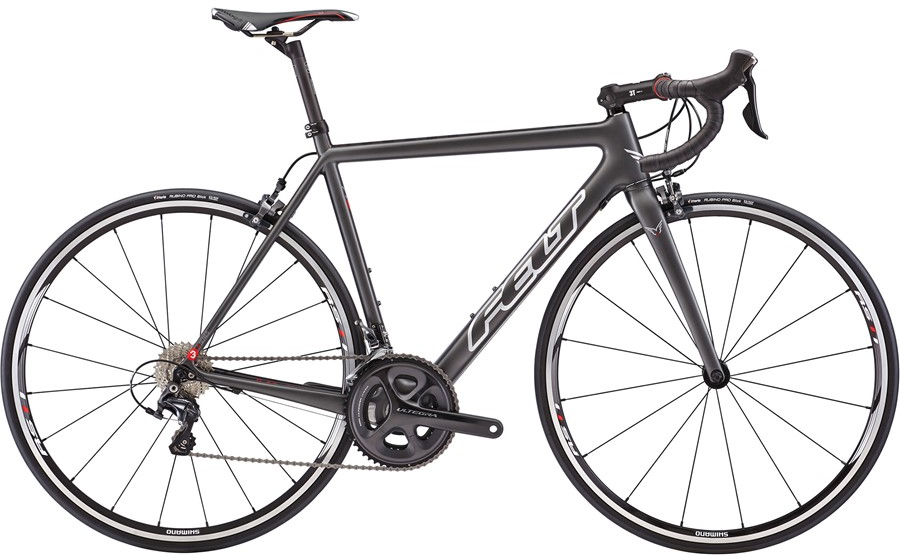

2014 Felt F Carbon geometry
Full frame geometry for the 2014 Felt F Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 500 | 370 | 74.5 | 71 | 100 | 510 | 440 | 681 | 72 | 577 | 403 | 969 | 52 | 60 |
| 51 | 514 | 381 | 74 | 72.5 | 110 | 530 | 480 | 717 | 70 | 578 | 403 | 971 | 50 | 53 |
| 54 | 526 | 389 | 73.5 | 73 | 120 | 545 | 520 | 750 | 70 | 580 | 405 | 974 | 45 | 55 |
| 56 | 548 | 397 | 73.5 | 73.5 | 140 | 560 | 540 | 770 | 70 | 588 | 405 | 983 | 43 | 54 |
| 58 | 569 | 412 | 73.5 | 74 | 160 | 580 | 470 | 796 | 70 | 604 | 407 | 1000 | 43 | 51 |
| 61 | 607 | 419 | 73 | 74 | 200 | 605 | 610 | 834 | 70 | 622 | 410 | 1022 | 43 | 51 |
All measurements in millimetres unless marked (°) for angles.
