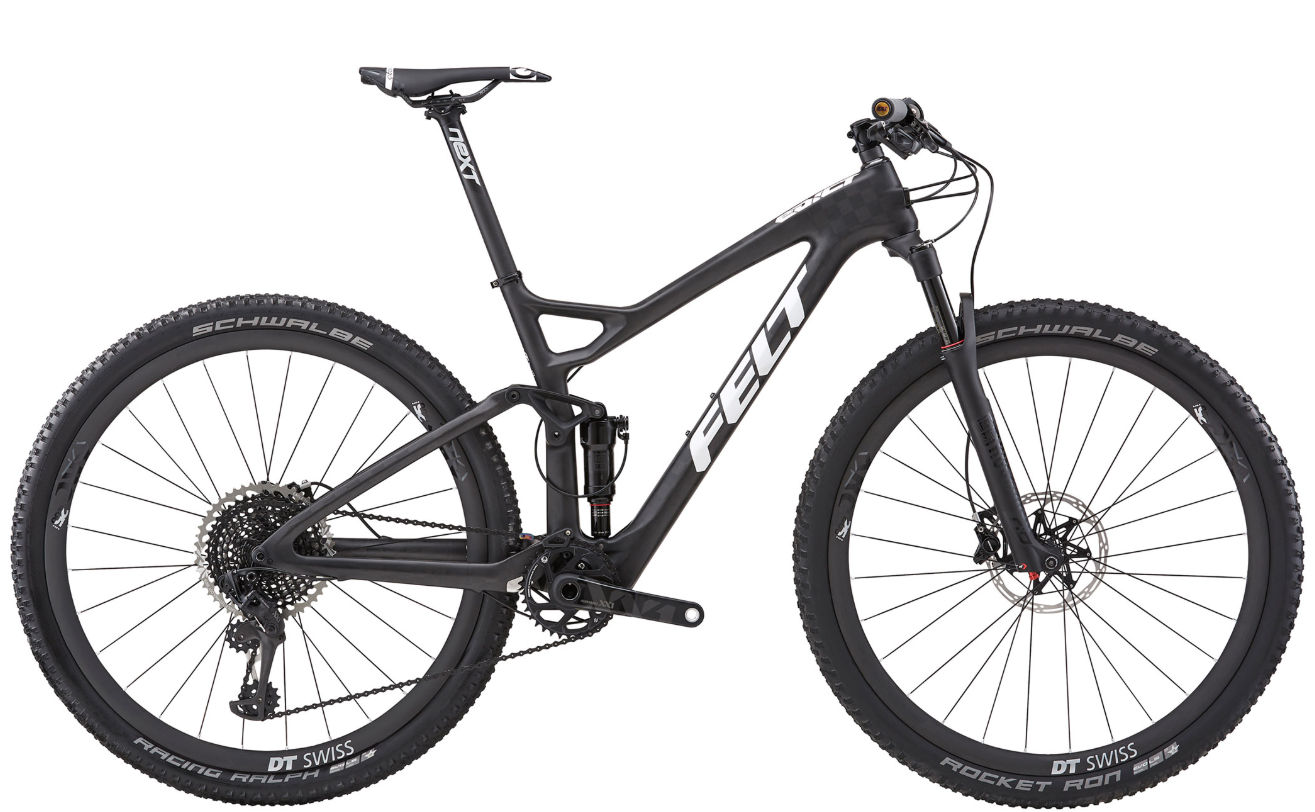

2018 Felt Edict Carbon MK II geometry
Full frame geometry for the 2018 Felt Edict Carbon MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 407 | 74.3 | 70 | 90 | 573 | 405 | 690 | 45 | 661 | 436 | 1093 | 51 |
| M | 603 | 429 | 74.3 | 70 | 105 | 599 | 450 | 726 | 45 | 688 | 436 | 1121 | 51 |
| L | 617 | 451 | 74.3 | 70 | 120 | 628 | 495 | 745 | 45 | 715 | 436 | 1148 | 51 |
| XL | 640 | 470 | 74.3 | 70 | 145 | 650 | 540 | 767 | 45 | 742 | 436 | 1175 | 51 |
All measurements in millimetres unless marked (°) for angles.
