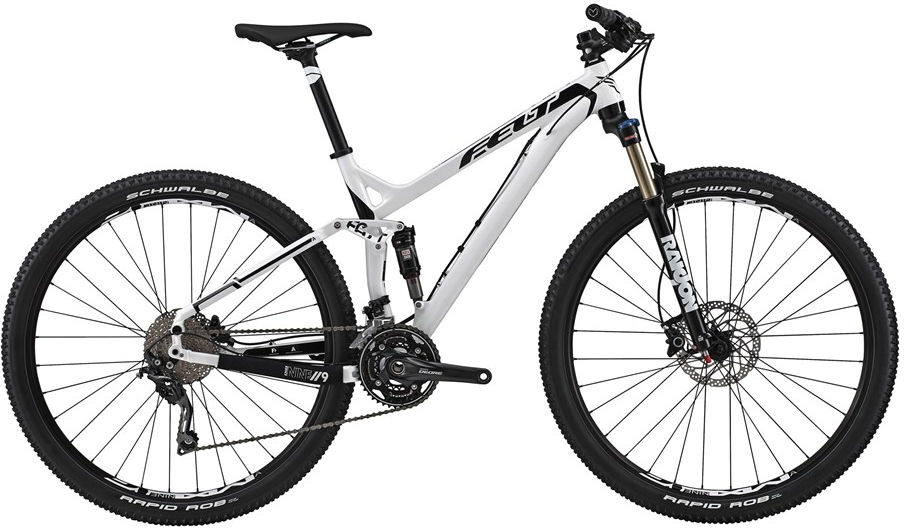

2015 Felt Edict Aluminium geometry
Full frame geometry for the 2015 Felt Edict Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 602 | 393 | 73 | 71.5 | 100 | 578 | 394 | 700 | 42 | 630 | 450 | 1078 | 46 | 71 |
| M/19 | 612 | 415 | 73 | 71.5 | 110 | 603 | 457 | 705 | 42 | 655 | 450 | 1103 | 46 | 71 |
| L/20 | 621 | 436 | 73 | 71.5 | 120 | 628 | 508 | 725 | 42 | 680 | 450 | 1128 | 46 | 71 |
| XL/22 | 640 | 452 | 73 | 71.5 | 140 | 650 | 572 | 763 | 42 | 702 | 450 | 1150 | 46 | 71 |
All measurements in millimetres unless marked (°) for angles.
