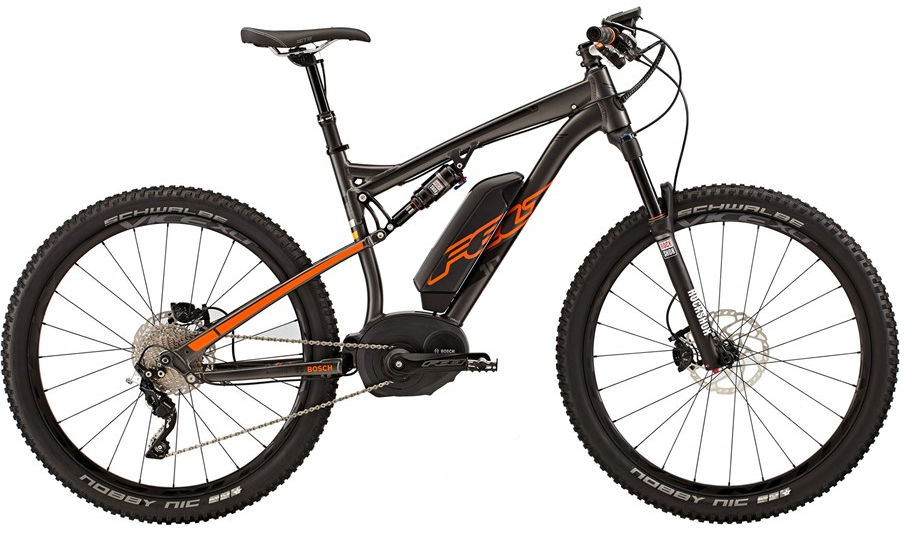

2015 Felt DUALe geometry
Full frame geometry for the 2015 Felt DUALe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 385 | 73.4 | 68.5 | 115 | 560 | 406 | 738 | 11 | 658 | 479 | 1137 | 42 | 86 |
| M | 597 | 408 | 73.4 | 68.5 | 125 | 585 | 457 | 738 | 11 | 684 | 479 | 1163 | 42 | 86 |
| L | 615 | 427 | 73.5 | 68.5 | 145 | 610 | 508 | 773 | 11 | 711 | 479 | 1190 | 42 | 86 |
| XL | 634 | 447 | 73.5 | 68.5 | 165 | 635 | 559 | 791 | 11 | 738 | 479 | 1217 | 42 | 86 |
All measurements in millimetres unless marked (°) for angles.
