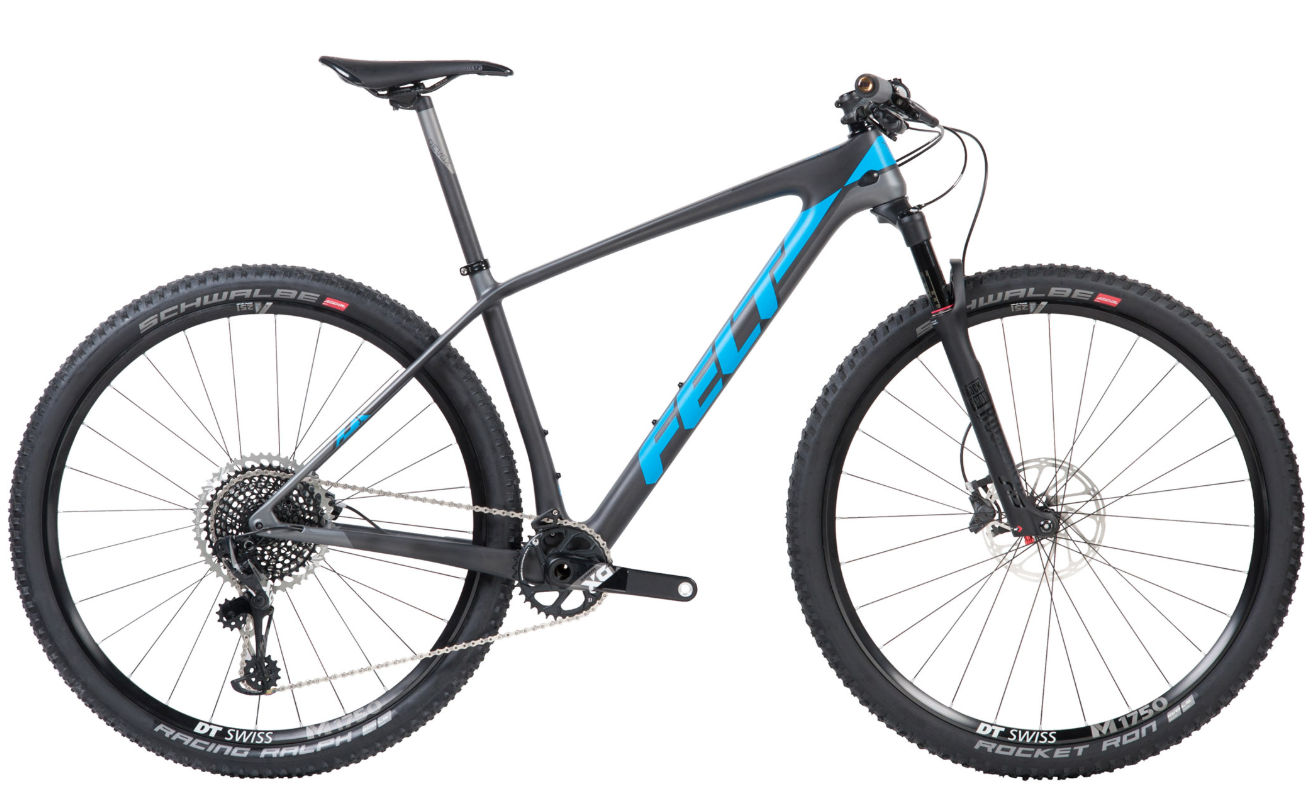

2018 Felt Doctrine geometry
Full frame geometry for the 2018 Felt Doctrine, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 602 | 384 | 73 | 69.5 | 90 | 568 | 360 | 683 | 61 | 644 | 430 | 1066 | 51 |
| 16 | 611 | 403 | 73 | 69.5 | 95 | 590 | 400 | 714 | 65 | 665 | 430 | 1088 | 51 |
| 18 | 620 | 422 | 73 | 69.5 | 105 | 612 | 451 | 757 | 65 | 688 | 430 | 1109 | 51 |
| 20 | 630 | 441 | 73 | 69.5 | 115 | 634 | 502 | 799 | 65 | 710 | 430 | 1132 | 51 |
| 22 | 639 | 461 | 73 | 69.5 | 125 | 656 | 554 | 841 | 65 | 733 | 430 | 1155 | 51 |
All measurements in millimetres unless marked (°) for angles.
