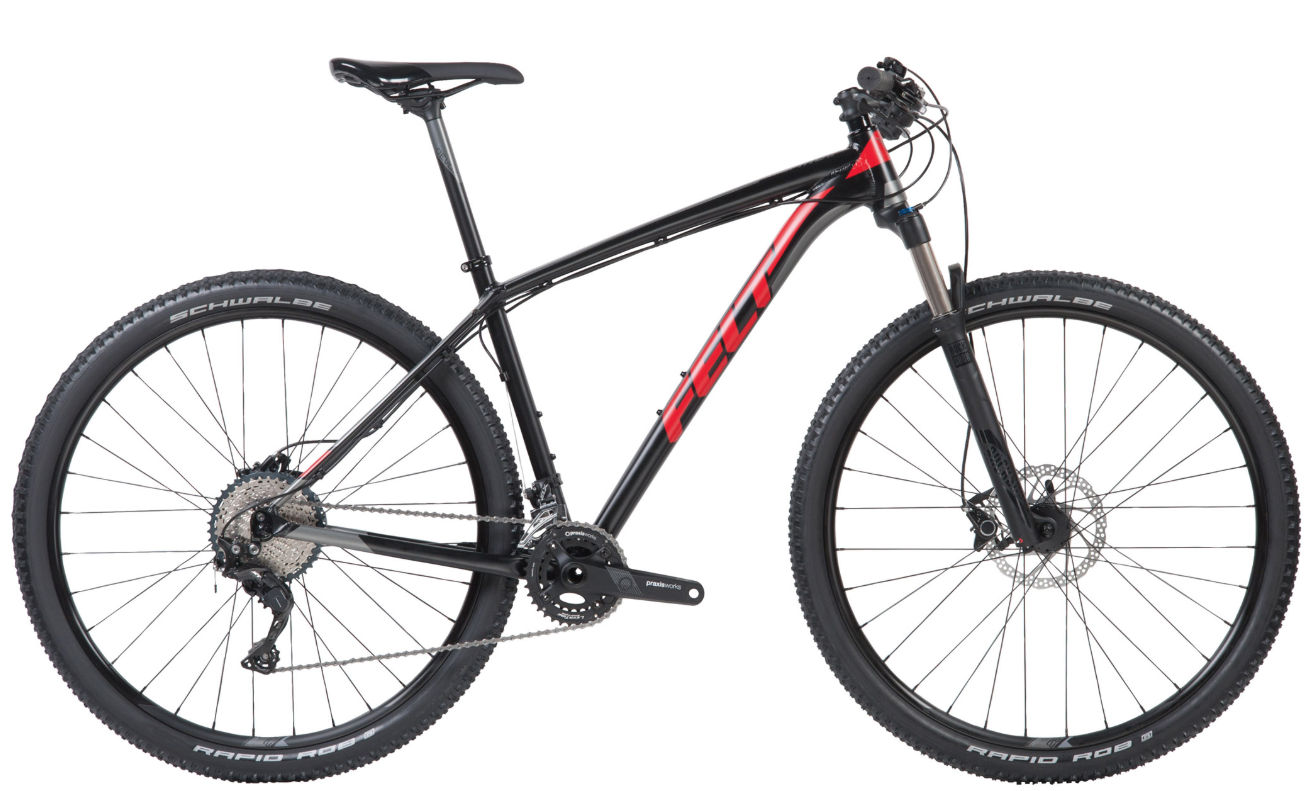

2018 Felt Dispatch 9 geometry
Full frame geometry for the 2018 Felt Dispatch 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 609 | 377 | 73 | 69 | 95 | 563 | 380 | 693 | 65 | 644 | 445 | 1080 | 51 |
| 16 | 613 | 397 | 73 | 69 | 100 | 585 | 425 | 703 | 65 | 666 | 445 | 1103 | 51 |
| 18 | 623 | 417 | 73 | 69 | 110 | 607 | 470 | 769 | 65 | 688 | 445 | 1126 | 51 |
| 20 | 632 | 436 | 73 | 69 | 120 | 629 | 515 | 806 | 65 | 711 | 445 | 1148 | 51 |
| 22 | 641 | 455 | 73 | 69 | 130 | 651 | 560 | 842 | 65 | 734 | 445 | 1171 | 51 |
All measurements in millimetres unless marked (°) for angles.
