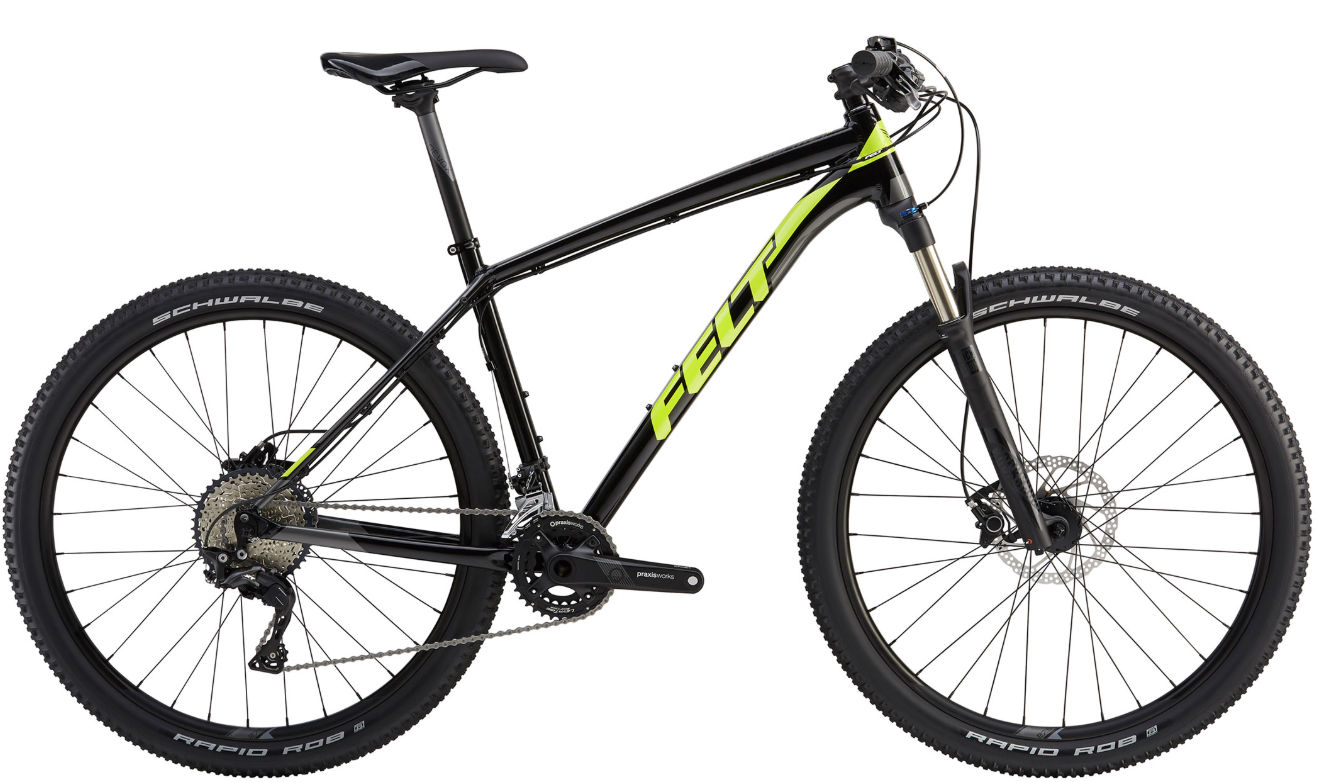

2018 Felt Dispatch 7 geometry
Full frame geometry for the 2018 Felt Dispatch 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 386 | 73 | 68.5 | 120 | 570 | 406 | 713 | 50 | 650 | 425 | 1070 | 42 |
| M | 610 | 404 | 73 | 68.5 | 130 | 590 | 457 | 756 | 50 | 671 | 425 | 1091 | 42 |
| L | 619 | 421 | 73 | 68.5 | 140 | 610 | 508 | 798 | 50 | 692 | 425 | 1112 | 42 |
| XL | 628 | 438 | 73 | 68.5 | 150 | 630 | 559 | 840 | 50 | 713 | 425 | 1133 | 42 |
All measurements in millimetres unless marked (°) for angles.
