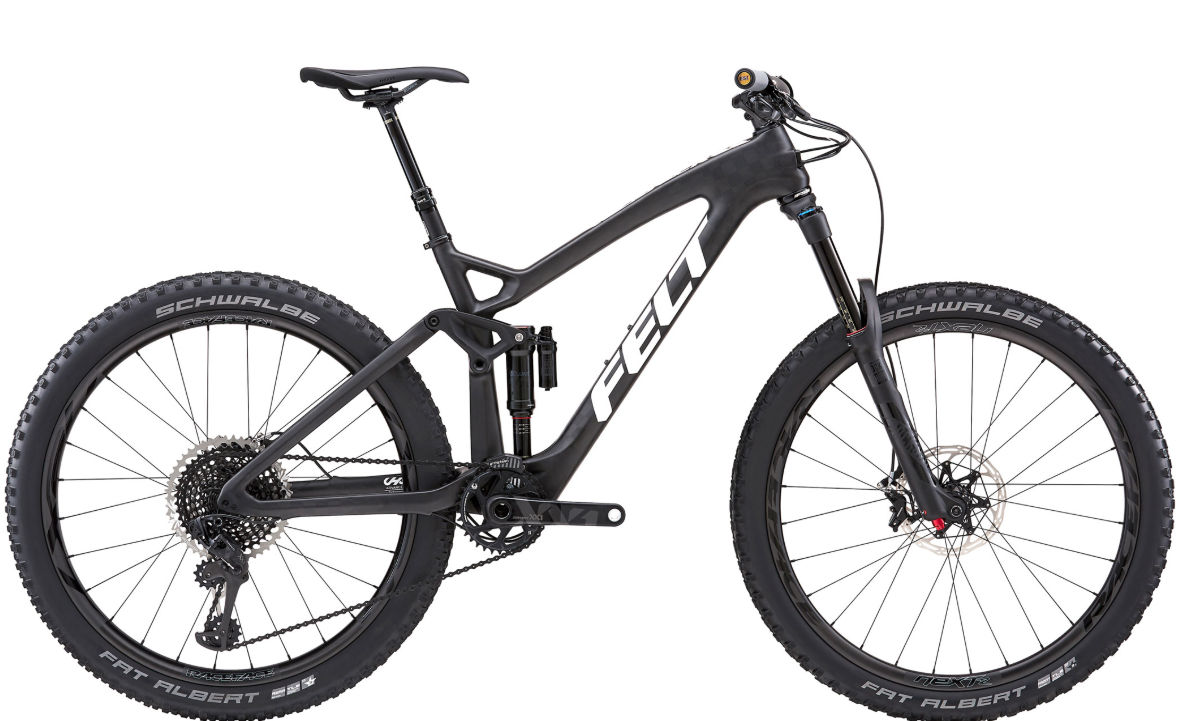

2018 Felt Decree Carbon MK II geometry
Full frame geometry for the 2018 Felt Decree Carbon MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 580 | 386 | 73 | 66.5 | 90 | 565 | 395 | 694 | 9 | 680 | 428 | 1108 | 42 |
| M | 594 | 412 | 73 | 66.5 | 105 | 597 | 430 | 725 | 9 | 712 | 428 | 1140 | 42 |
| L | 612 | 436 | 73 | 66.5 | 125 | 627 | 485 | 774 | 9 | 744 | 428 | 1172 | 42 |
| XL | 631 | 460 | 73 | 66.5 | 145 | 657 | 540 | 822 | 9 | 776 | 428 | 1204 | 42 |
All measurements in millimetres unless marked (°) for angles.
