2016 Felt · MD

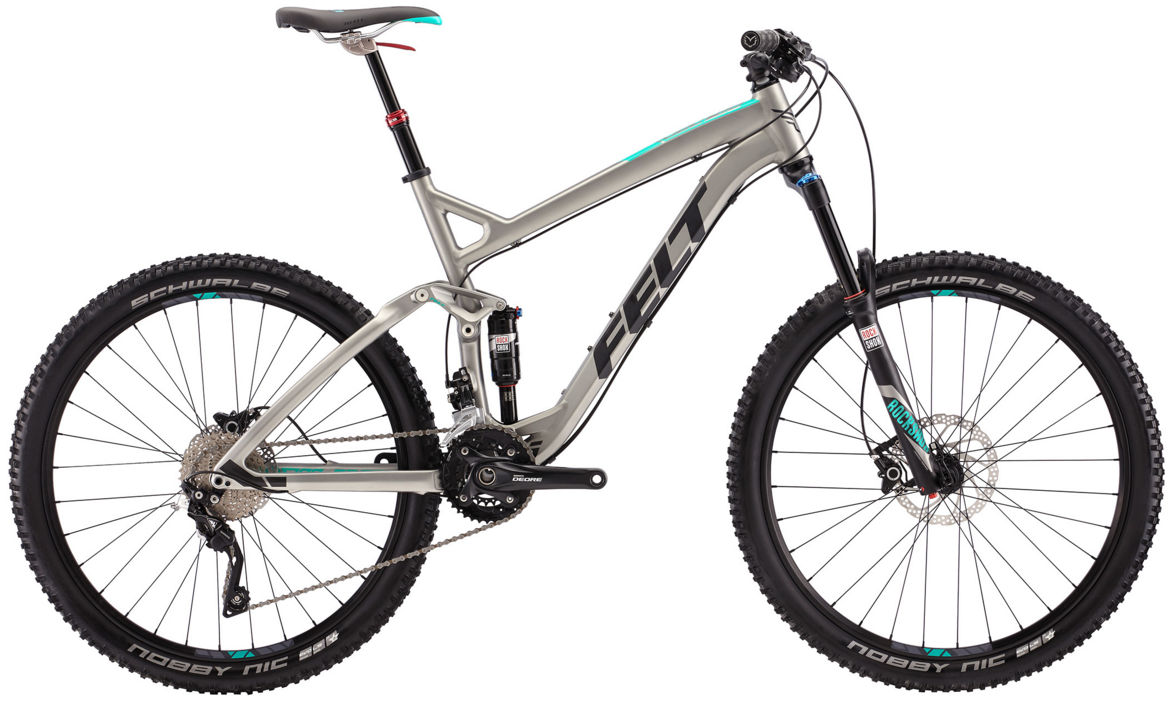

2016 Felt Decree Alloy geometry
Full frame geometry for the 2016 Felt Decree Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 576 | 391 | 73 | 66.5 | 90 | 565 | 395 | 694 | 12 | 676 | 430 | 1107 | 42 |
| 18 | 590 | 417 | 73 | 66.5 | 105 | 595 | 430 | 725 | 12 | 708 | 430 | 1139 | 42 |
| 20 | 609 | 441 | 73 | 66.5 | 125 | 625 | 485 | 774 | 12 | 740 | 430 | 1171 | 42 |
| 22 | 627 | 465 | 73 | 66.5 | 145 | 655 | 540 | 822 | 12 | 772 | 430 | 1203 | 42 |
All measurements in millimetres unless marked (°) for angles.
