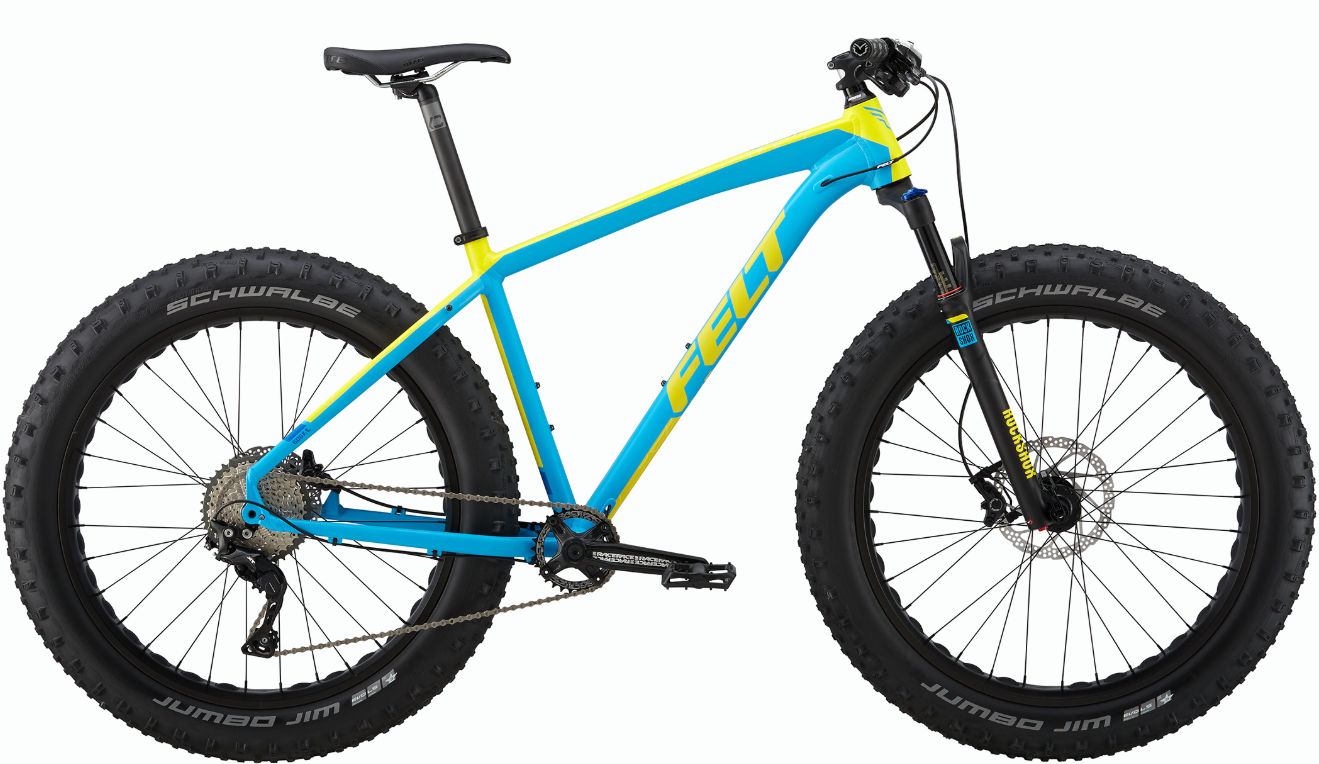

2018 Felt DD Suspension geometry
Full frame geometry for the 2018 Felt DD Suspension, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 396 | 73 | 70 | 105 | 580 | 406 | 688 | 65 | 642 | 455 | 1090 | 45 | 74 |
| M | 613 | 422 | 73 | 70 | 120 | 610 | 470 | 744 | 65 | 673 | 455 | 1120 | 45 | 74 |
| L | 628 | 448 | 73 | 70 | 135 | 640 | 533 | 808 | 65 | 704 | 455 | 1151 | 45 | 74 |
All measurements in millimetres unless marked (°) for angles.
