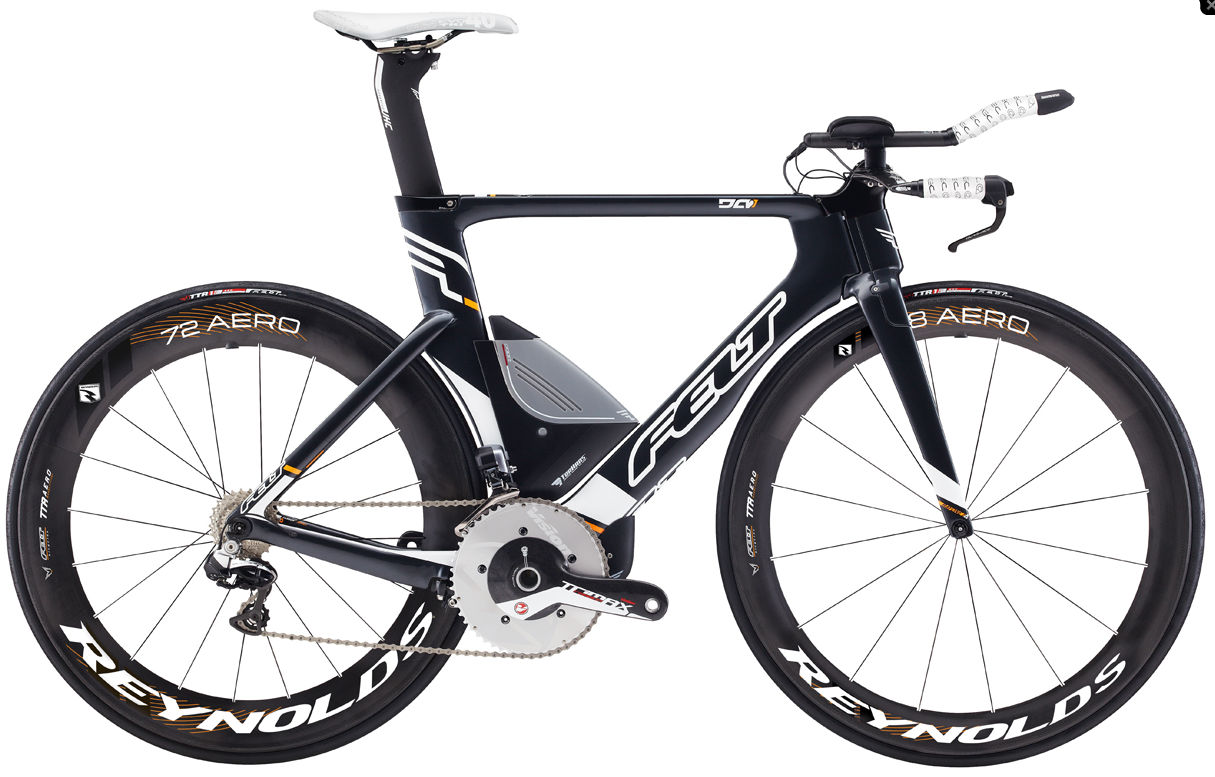

2012 Felt DA geometry
Full frame geometry for the 2012 Felt DA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 433 | 387 | 77.6 | 71 | 78 | 470 | 724 | 45 | 565 | 375 | 935 | 40 | 65 |
| 51 | 488 | 399 | 77 | 72.5 | 80 | 510 | 770 | 70 | 577 | 395 | 962 | 40 | 63 |
| 54 | 497 | 416 | 77 | 73 | 88 | 540 | 794 | 70 | 593 | 395 | 978 | 40 | 60 |
| 56 | 516 | 432 | 77 | 73 | 108 | 560 | 813 | 70 | 614 | 395 | 999 | 40 | 60 |
| 58 | 536 | 447 | 77 | 73 | 128 | 580 | 833 | 70 | 635 | 395 | 1020 | 40 | 60 |
All measurements in millimetres unless marked (°) for angles.
