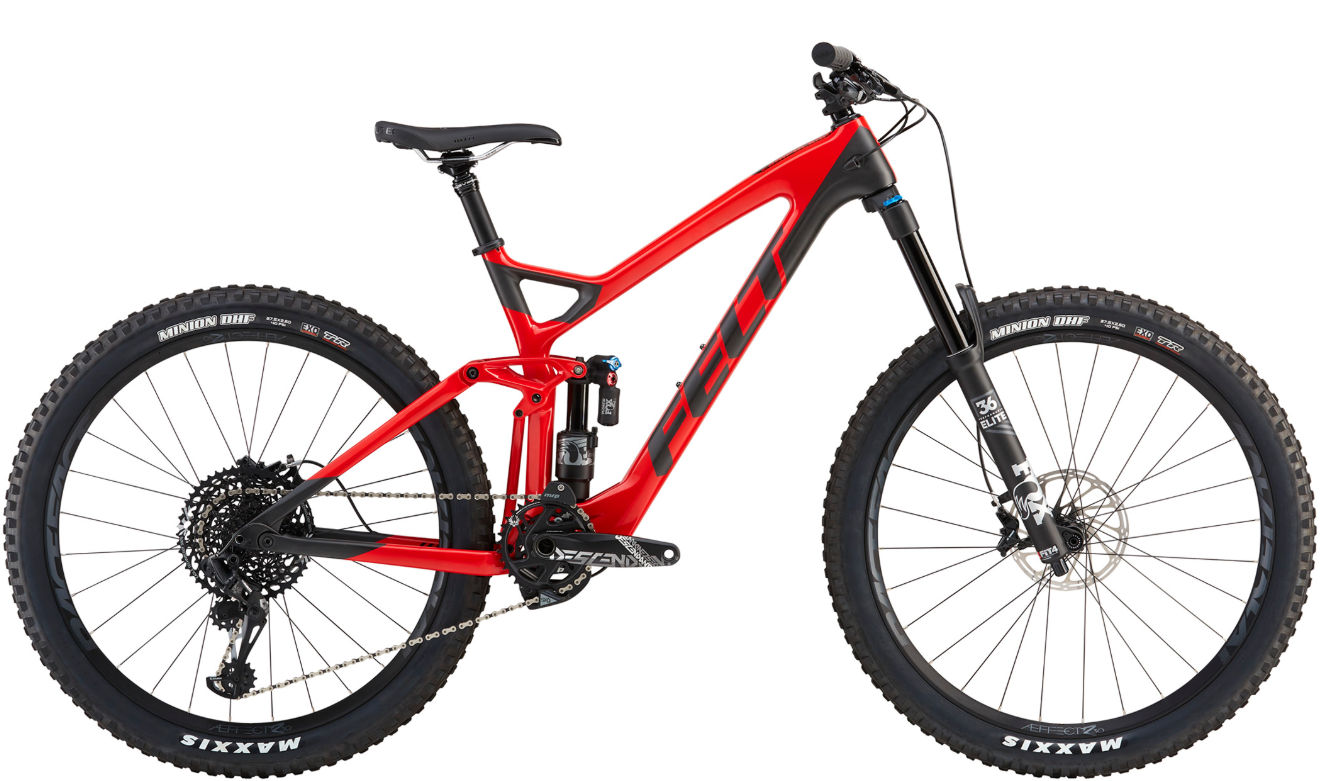

2018 Felt Compulsion MK II geometry
Full frame geometry for the 2018 Felt Compulsion MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 405 | 74.4 | 65 | 90 | 568 | 405 | 708 | 10 | 723 | 433 | 1154 | 46 |
| M | 597 | 430 | 74.4 | 65 | 105 | 597 | 435 | 722 | 10 | 754 | 433 | 1187 | 46 |
| L | 615 | 455 | 74.4 | 65 | 125 | 627 | 470 | 735 | 10 | 788 | 433 | 1221 | 46 |
| XL | 638 | 475 | 74.4 | 65 | 150 | 654 | 505 | 750 | 10 | 819 | 433 | 1252 | 46 |
All measurements in millimetres unless marked (°) for angles.
