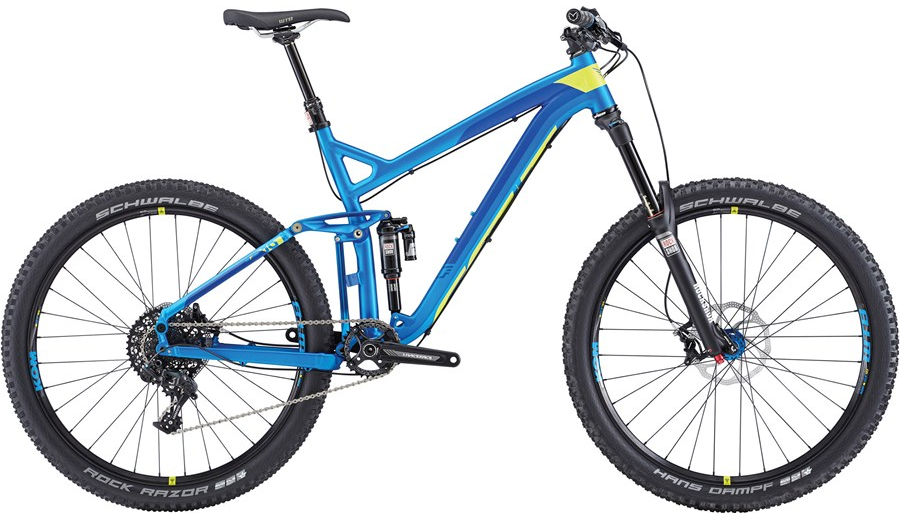

2015 Felt Compulsion MK I geometry
Full frame geometry for the 2015 Felt Compulsion MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 584 | 385 | 73.7 | 66 | 90 | 558 | 380 | 686 | 4 | 689 | 436 | 1125 | 42 | 103 |
| M/18 | 598 | 411 | 73.7 | 66 | 105 | 588 | 430 | 732 | 4 | 721 | 436 | 1157 | 42 | 103 |
| L/20 | 616 | 435 | 73.7 | 66 | 125 | 618 | 485 | 781 | 4 | 754 | 436 | 1190 | 42 | 103 |
| XL/22 | 635 | 460 | 73.7 | 66 | 145 | 648 | 540 | 829 | 4 | 787 | 436 | 1223 | 42 | 103 |
All measurements in millimetres unless marked (°) for angles.
