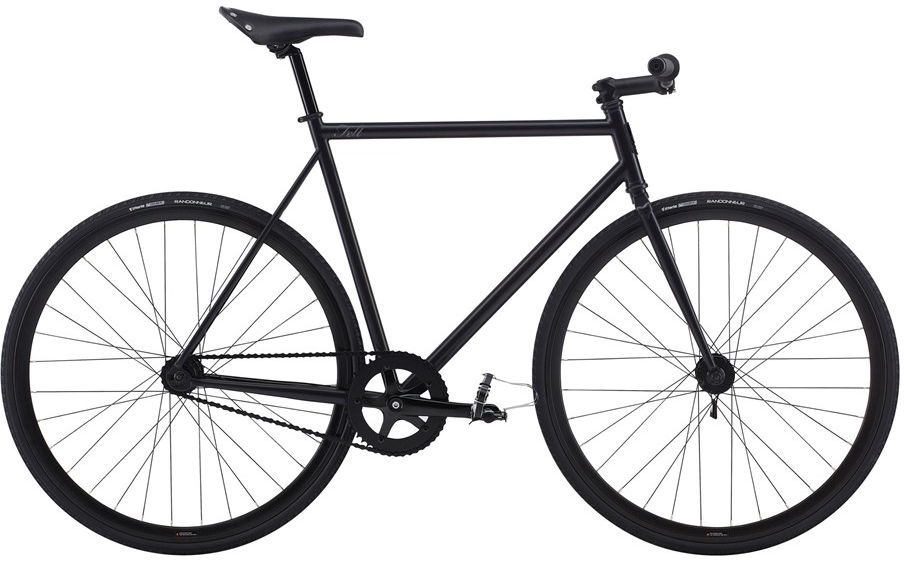

2014 Felt Brougham geometry
Full frame geometry for the 2014 Felt Brougham, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 510 | 389 | 75.5 | 73 | 110 | 523 | 510 | 768 | 55 | 576 | 395 | 972 | 43 | 57 |
| 54 | 529 | 388 | 74 | 73 | 130 | 540 | 540 | 792 | 55 | 580 | 395 | 976 | 43 | 57 |
| 56 | 550 | 402 | 74 | 73.5 | 150 | 560 | 560 | 812 | 55 | 596 | 395 | 992 | 43 | 54 |
| 58 | 570 | 416 | 74 | 74 | 170 | 580 | 580 | 832 | 55 | 611 | 395 | 1007 | 43 | 51 |
| 61 | 599 | 426 | 74 | 74 | 200 | 598 | 610 | 861 | 55 | 629 | 395 | 1025 | 43 | 51 |
All measurements in millimetres unless marked (°) for angles.
