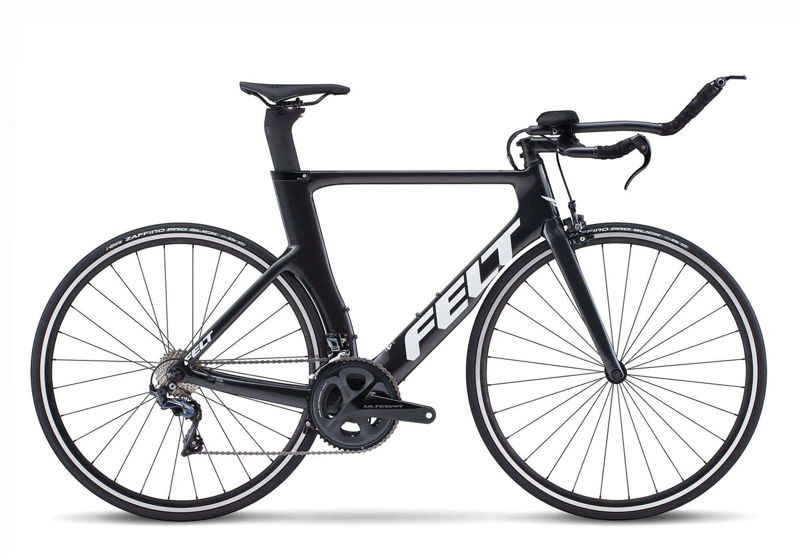

2020 Felt B Triathlon geometry
Full frame geometry for the 2020 Felt B Triathlon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 (XS)cm | 468 | 375 | 76.5 | 71 | 115 | 490 | 470 | 703 | 45 | 565 | 935 | 40 |
| 51 (S)cm | 521 | 388 | 76 | 72.5 | 115 | 518 | 510 | 743 | 70 | 577 | 961 | 40 |
| 54 (M)cm | 535 | 405 | 76 | 73 | 127 | 539 | 540 | 764 | 70 | 593 | 978 | 40 |
| 56 (L)cm | 554 | 420 | 76 | 73 | 147 | 559 | 560 | 779 | 70 | 614 | 999 | 40 |
| 58 (XL)cm | 573 | 436 | 76 | 73 | 167 | 579 | 580 | 780 | 70 | 635 | 1020 | 40 |
| 61 (XXL)cm | 602 | 444 | 76 | 73 | 198 | 594 | 610 | 780 | 70 | 652 | 1037 | 40 |
All measurements in millimetres unless marked (°) for angles.
