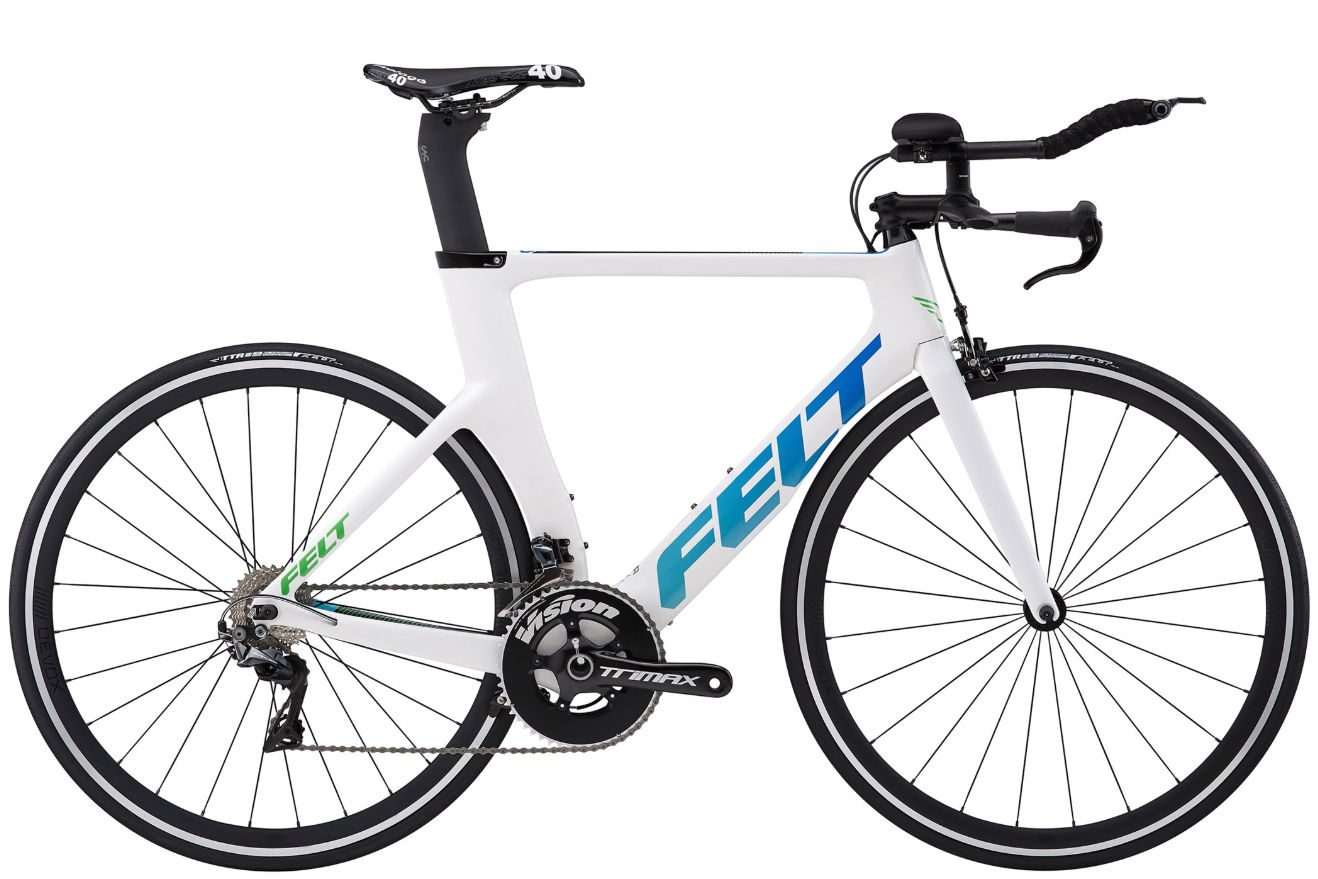

2018 Felt B-Series MKIII geometry
Full frame geometry for the 2018 Felt B-Series MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 521 | 388 | 76 | 72.5 | 115 | 518 | 510 | 743 | 70 | 577 | 395 | 961 | 40 | 63 |
| 54 | 536 | 405 | 76 | 73 | 127 | 539 | 540 | 764 | 70 | 593 | 395 | 978 | 40 | 60 |
| 56 | 556 | 420 | 76 | 73 | 147 | 614 | 560 | 779 | 70 | 614 | 395 | 999 | 40 | 60 |
| 58 | 576 | 435 | 76 | 73 | 167 | 579 | 580 | 780 | 70 | 635 | 395 | 1020 | 40 | 60 |
| 61 | 606 | 443 | 76 | 73 | 198 | 594 | 510 | 780 | 74 | 652 | 395 | 1037 | 40 | 60 |
All measurements in millimetres unless marked (°) for angles.
