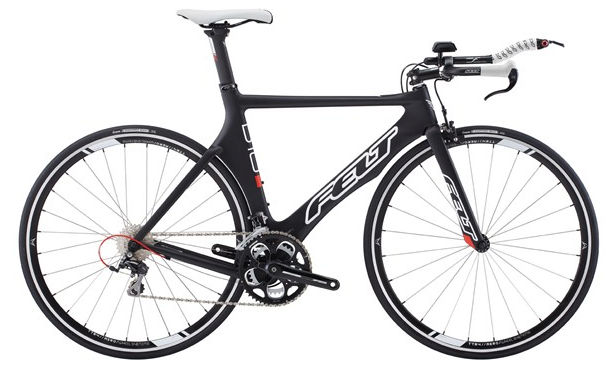

2016 Felt B-Series MKI geometry
Full frame geometry for the 2016 Felt B-Series MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 484 | 391 | 77.7 | 72.5 | 130 | 500 | 500 | 720 | 45 | 568 | 385 | 952 | 35 | 61 |
| 52 | 502 | 407 | 77.6 | 72.5 | 100 | 520 | 520 | 743 | 70 | 589 | 405 | 984 | 40 | 63 |
| 54 | 514 | 414 | 75.9 | 73 | 110 | 545 | 540 | 764 | 70 | 596 | 405 | 991 | 40 | 60 |
| 56 | 528 | 426 | 76.3 | 73 | 125 | 557 | 560 | 779 | 70 | 612 | 405 | 1007 | 40 | 60 |
| 58 | 547 | 449 | 76.7 | 73 | 145 | 581 | 580 | 780 | 70 | 640 | 405 | 1036 | 40 | 60 |
| 60 | 561 | 461 | 77 | 73 | 160 | 593 | 600 | 780 | 70 | 657 | 405 | 1052 | 40 | 60 |
All measurements in millimetres unless marked (°) for angles.
