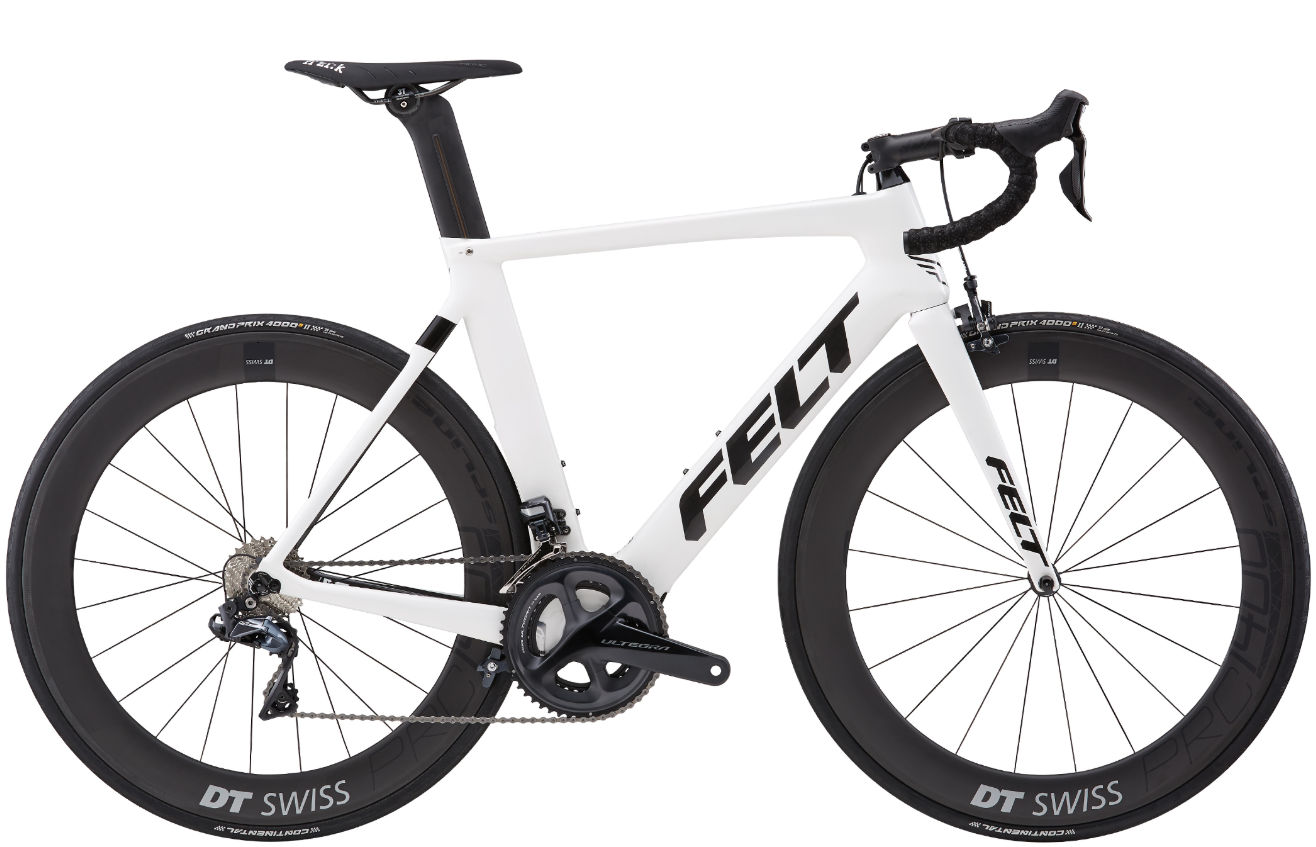

2014 Felt AR MKII Carbon geometry
Full frame geometry for the 2014 Felt AR MKII Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 510 | 367 | 74.5 | 71 | 110 | 510 | 440 | 710 | 70 | 577 | 408 | 974 | 52 | 60 |
| 51 | 523 | 379 | 74 | 72.5 | 120 | 530 | 470 | 740 | 70 | 579 | 480 | 977 | 50 | 53 |
| 54 | 546 | 383 | 73.5 | 73 | 140 | 545 | 500 | 764 | 70 | 580 | 410 | 980 | 45 | 55 |
| 56 | 567 | 392 | 73.5 | 73.5 | 160 | 560 | 520 | 785 | 70 | 588 | 410 | 988 | 43 | 54 |
| 58 | 588 | 406 | 73.5 | 74 | 180 | 580 | 550 | 812 | 70 | 603 | 410 | 1003 | 43 | 51 |
| 61 | 617 | 417 | 73 | 74 | 210 | 605 | 590 | 845 | 70 | 622 | 410 | 1024 | 43 | 51 |
All measurements in millimetres unless marked (°) for angles.
