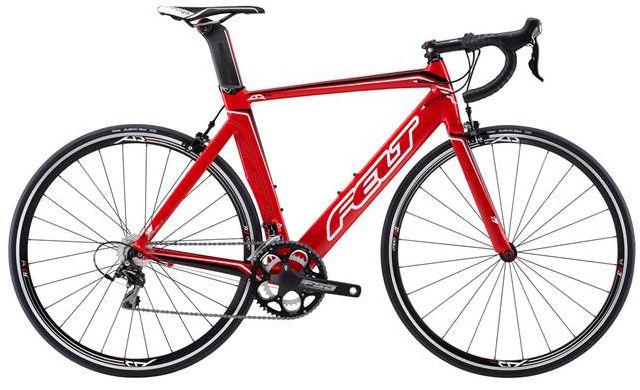

2014 Felt AR MKII Al geometry
Full frame geometry for the 2014 Felt AR MKII Al, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 519 | 364 | 74.5 | 71 | 120 | 510 | 450 | 70 | 577 | 408 | 974 | 52 | 60 |
| 51 | 532 | 375 | 74 | 72.5 | 130 | 530 | 480 | 70 | 579 | 480 | 977 | 52 | 51 |
| 54 | 556 | 382 | 73.5 | 73 | 150 | 545 | 510 | 70 | 580 | 410 | 980 | 43 | 57 |
| 56 | 577 | 389 | 73.5 | 73.5 | 170 | 560 | 530 | 70 | 588 | 410 | 988 | 43 | 54 |
| 58 | 597 | 403 | 73.5 | 74 | 190 | 580 | 560 | 70 | 603 | 410 | 1003 | 43 | 51 |
| 61 | 626 | 424 | 73 | 74 | 220 | 605 | 600 | 70 | 622 | 410 | 1024 | 43 | 51 |
All measurements in millimetres unless marked (°) for angles.
