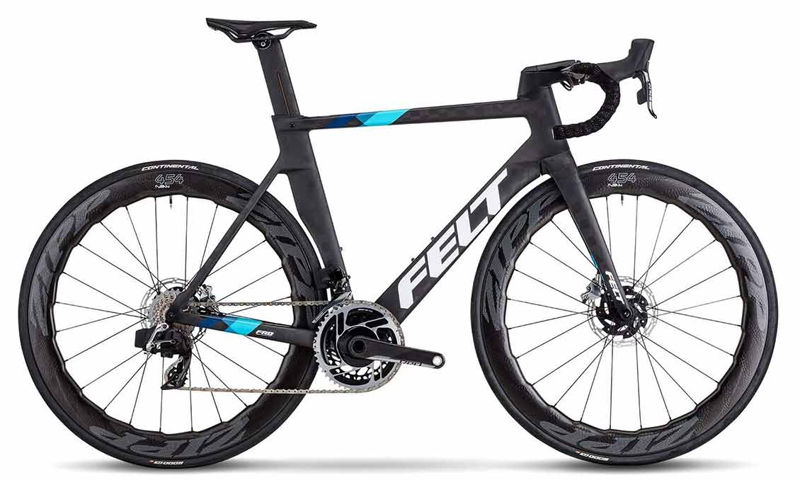

2020 Felt AR Aero Road geometry
Full frame geometry for the 2020 Felt AR Aero Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 48cm | 501 | 370 | 74.3 | 71 | 97 | 509 | 441 | 705 | 72 | 577 | 974 | 52 |
| S 51cm | 518 | 381 | 74.4 | 72.1 | 111 | 529 | 473 | 734 | 70 | 579 | 977 | 47 |
| M 54cm | 539 | 383 | 73.5 | 73 | 130 | 543 | 502.5 | 760 | 70 | 580 | 980 | 47 |
| L 56cm | 561 | 394 | 73.5 | 73.5 | 150 | 560 | 526 | 780 | 70 | 588 | 988 | 43 |
| XL 58cm | 579 | 408 | 73.5 | 74 | 167 | 580 | 553 | 807 | 70 | 603 | 1003 | 43 |
| XXL 61cm | 608 | 419 | 73 | 74 | 197.5 | 605 | 601 | 845 | 70 | 622 | 1024 | 43 |
All measurements in millimetres unless marked (°) for angles.
