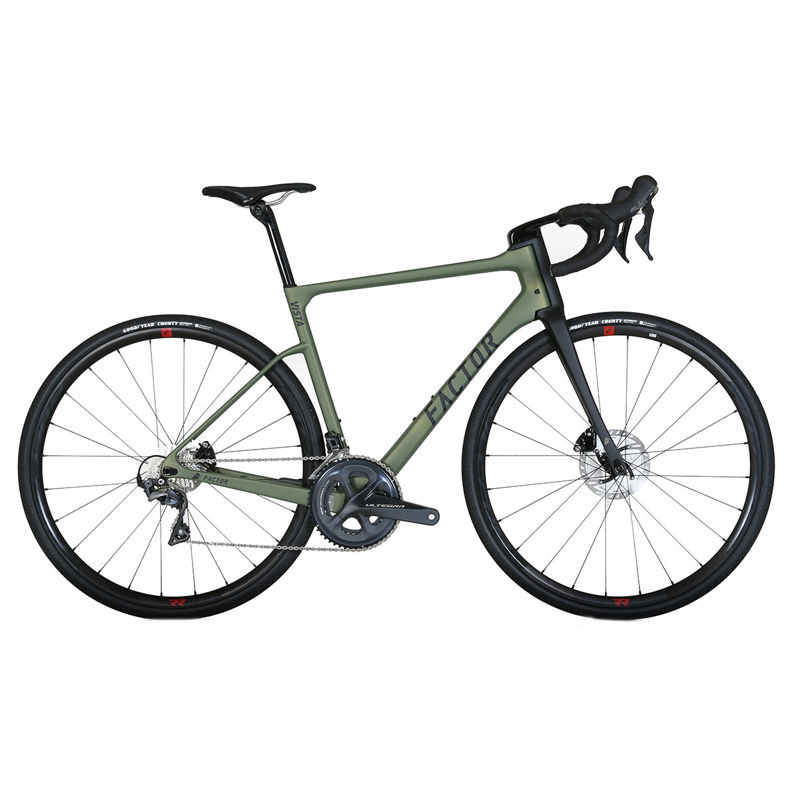

2019 Factor Vista geometry
Full frame geometry for the 2019 Factor Vista, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 530 | 363 | 73.5 | 70.6 | 520 | 448 | 732 | 78 | 415 | 58 |
| 52 | 546 | 370 | 73.5 | 71.1 | 532 | 465 | 749 | 78 | 415 | 58 |
| 54 | 566 | 379 | 73.5 | 72.4 | 547 | 502 | 782 | 75 | 418 | 48 |
| 56 | 588 | 386 | 73.5 | 72.5 | 560 | 525 | 804 | 75 | 418 | 48 |
| 58 | 610 | 394 | 73.5 | 72.5 | 575 | 548 | 825 | 75 | 418 | 48 |
All measurements in millimetres unless marked (°) for angles.
