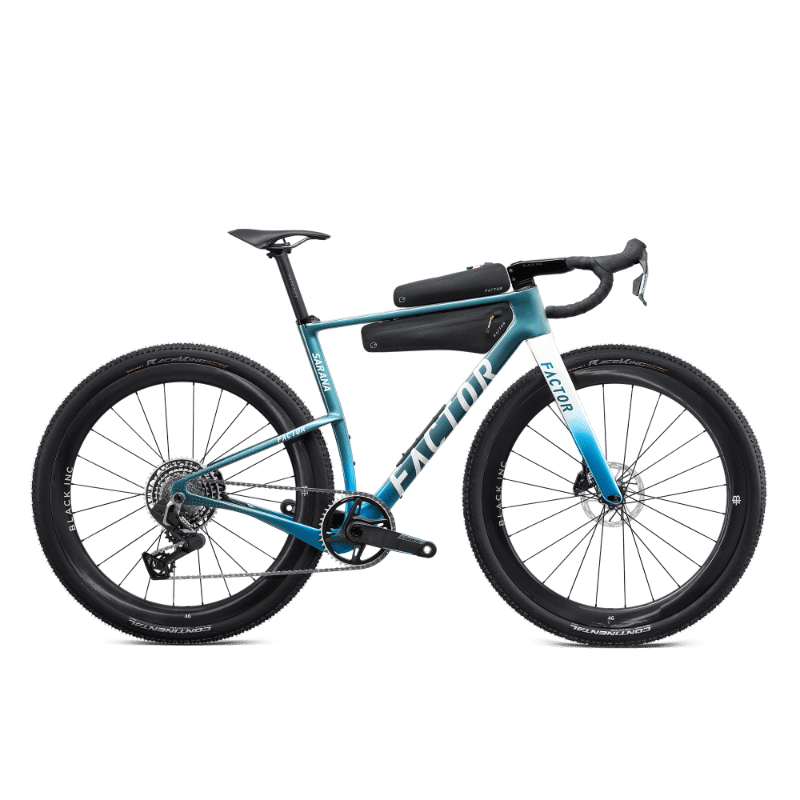

2026 Factor SARANA geometry
Full frame geometry for the 2026 Factor SARANA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 49 | 544 | 378 | 75.3 | 71.5 | 82 | 425 | 1003 | 51 | 65 |
| 52 | 558 | 388 | 74.5 | 71.5 | 82 | 425 | 1018 | 51 | 65 |
| 54 | 573 | 398 | 74.5 | 71.5 | 80 | 425 | 1032 | 51 | 65 |
| 56 | 593 | 408 | 74 | 71.5 | 80 | 425 | 1051 | 51 | 65 |
| 58 | 613 | 418 | 74 | 71.5 | 80 | 425 | 1067 | 51 | 65 |
All measurements in millimetres unless marked (°) for angles.
