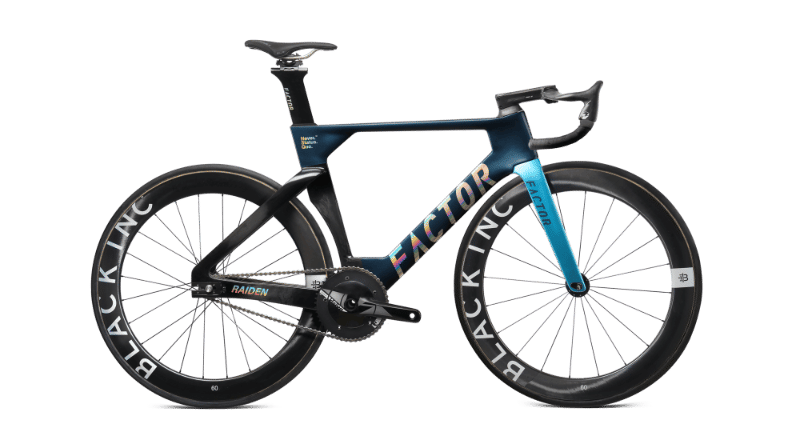

2026 Factor Raiden geometry
Full frame geometry for the 2026 Factor Raiden, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 475 | 390 | 75 | 73.3 | 465 | 747 | 50 | 375 | 930 | 40 | 60 |
| S | 495 | 410 | 75 | 73.3 | 485 | 767 | 50 | 375 | 957 | 40 | 60 |
| M | 515 | 435 | 75 | 73.3 | 504 | 786 | 50 | 375 | 988 | 40 | 60 |
| L | 530 | 454 | 75 | 73.3 | 519 | 800 | 50 | 375 | 1011 | 40 | 60 |
All measurements in millimetres unless marked (°) for angles.
