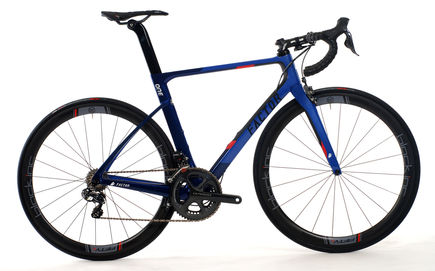

2016 Factor One-S geometry
Full frame geometry for the 2016 Factor One-S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|
| 51 | 519 | 384 | 74 | 72.5 | 68 | 403 | 43 |
| 54 | 543 | 389 | 73.5 | 73 | 68 | 403 | 43 |
| 56 | 563 | 398 | 73.5 | 73.3 | 68 | 403 | 43 |
| 58 | 583 | 405 | 73 | 73.5 | 68 | 403 | 43 |
| 61 | 608 | 414 | 72.8 | 73.8 | 68 | 403 | 43 |
All measurements in millimetres unless marked (°) for angles.
