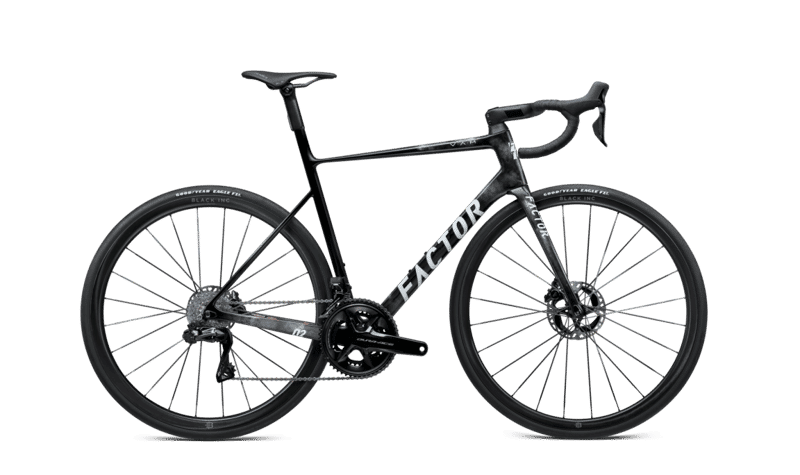

2025 Factor O2 VAM geometry
Full frame geometry for the 2025 Factor O2 VAM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|
| 45 | 502 | 360 | 75.5 | 71.1 | 72 | 405 | 970 | 57 |
| 49 | 514 | 367 | 74.5 | 71.7 | 72 | 405 | 969 | 53 |
| 52 | 535 | 373 | 74 | 72.5 | 72 | 405 | 971 | 48 |
| 54 | 552 | 381 | 74 | 72.5 | 70 | 405 | 985 | 48 |
| 56 | 574 | 389 | 73.5 | 73.3 | 70 | 405 | 987 | 43 |
| 58 | 597 | 401 | 73.5 | 73.3 | 70 | 408 | 1006 | 43 |
| 61 | 611 | 410 | 73.5 | 73.3 | 70 | 410 | 1022 | 43 |
All measurements in millimetres unless marked (°) for angles.
