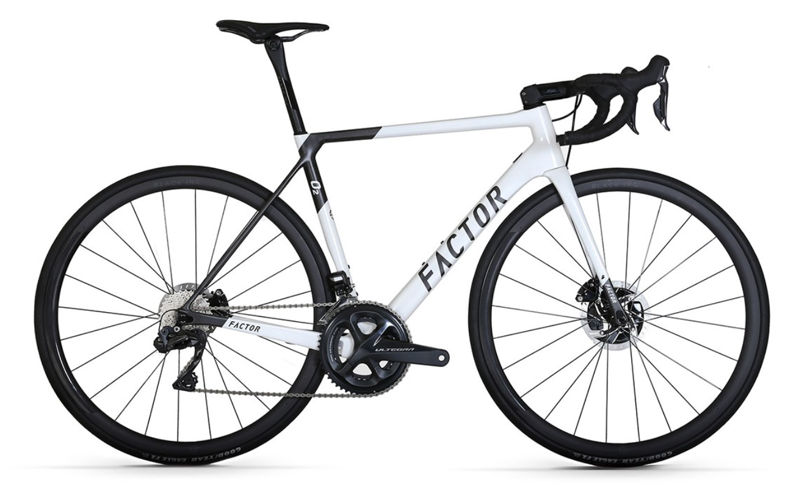

2020 Factor O2 Disc geometry
Full frame geometry for the 2020 Factor O2 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 503 | 370 | 74 | 71.3 | 515 | 455 | 727 | 75 | 576 | 406 | 970 | 53 | 60 |
| 52 | 523 | 376 | 73 | 71.6 | 534 | 480 | 750 | 70 | 587 | 406 | 982 | 53 | 58 |
| 54 | 542 | 384 | 73 | 73.1 | 550 | 503 | 772 | 70 | 577 | 406 | 972 | 43 | 59 |
| 56 | 565 | 392 | 73 | 73.3 | 565 | 526 | 794 | 70 | 590 | 406 | 985 | 43 | 58 |
| 58 | 587 | 401 | 73 | 73.3 | 580 | 548 | 820 | 70 | 605 | 410 | 1005 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
