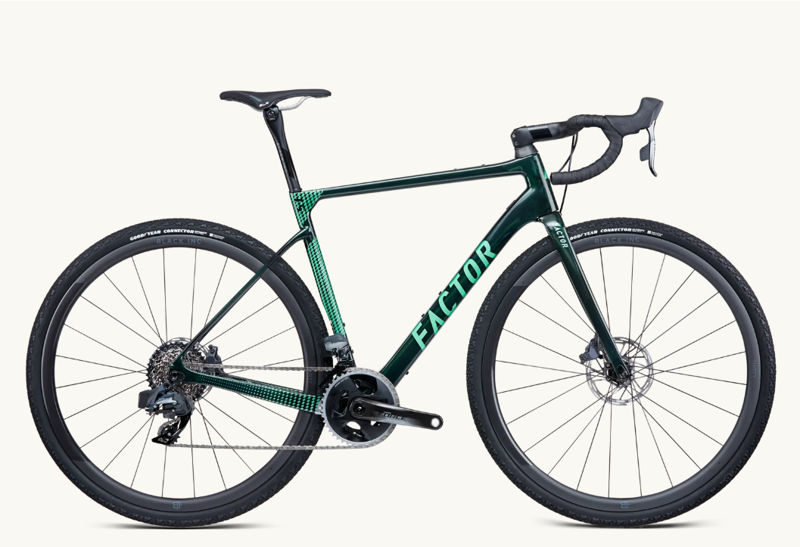

2020 Factor LS2020 geometry
Full frame geometry for the 2020 Factor LS2020, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 530 | 372 | 74.5 | 519 | 455 | 748 | 76 | 582 | 420 | 990 | 50 | 60 |
| 52 | 547 | 378 | 74 | 535 | 481 | 772 | 76 | 589 | 420 | 998 | 50 | 60 |
| 54 | 566 | 383 | 73.5 | 550 | 507 | 789 | 76 | 597 | 420 | 1005 | 50 | 59 |
| 56 | 585 | 392 | 73.5 | 566 | 527 | 809 | 76 | 612 | 420 | 1020 | 50 | 59 |
| 58 | 605 | 401 | 73.5 | 580 | 552 | 831 | 76 | 627 | 420 | 1035 | 50 | 60 |
All measurements in millimetres unless marked (°) for angles.
