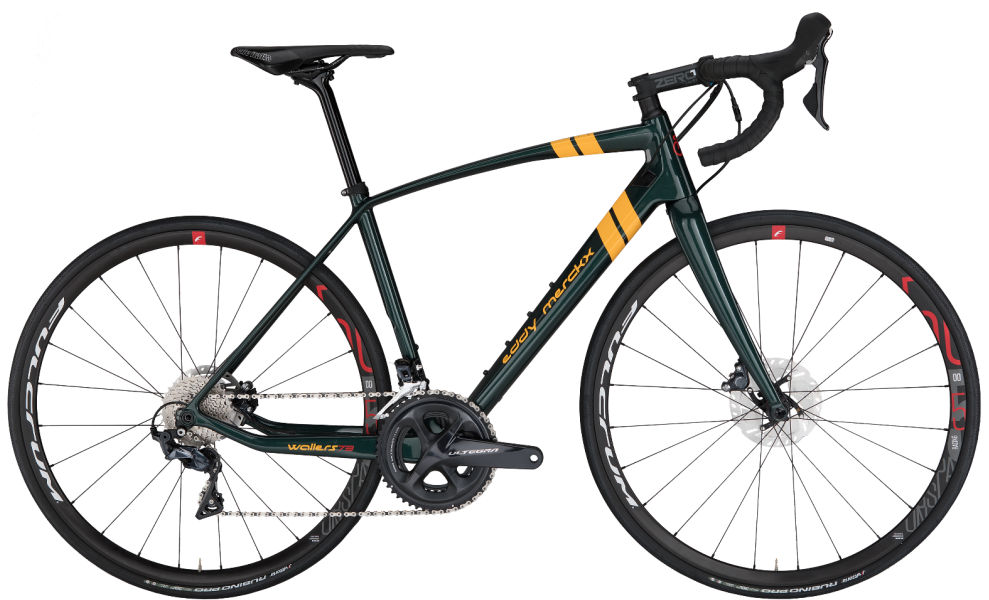

2019 Eddy Merckx Wallers73 geometry
Full frame geometry for the 2019 Eddy Merckx Wallers73, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 528 | 368 | 74 | 71 | 105 | 521 | 435 | 754 | 70 | 576 | 425 | 991 |
| S | 546 | 373 | 74 | 71.5 | 124 | 531 | 445 | 769 | 69 | 584 | 425 | 999 |
| M | 567 | 378 | 73.5 | 72 | 144 | 547 | 475 | 796 | 69 | 591 | 426 | 1007 |
| L | 592 | 384 | 73 | 72.5 | 168 | 565 | 505 | 825 | 69 | 600 | 427 | 1017 |
| XL | 611 | 388 | 73 | 73 | 187 | 575 | 535 | 851 | 68 | 605 | 427 | 1023 |
All measurements in millimetres unless marked (°) for angles.
