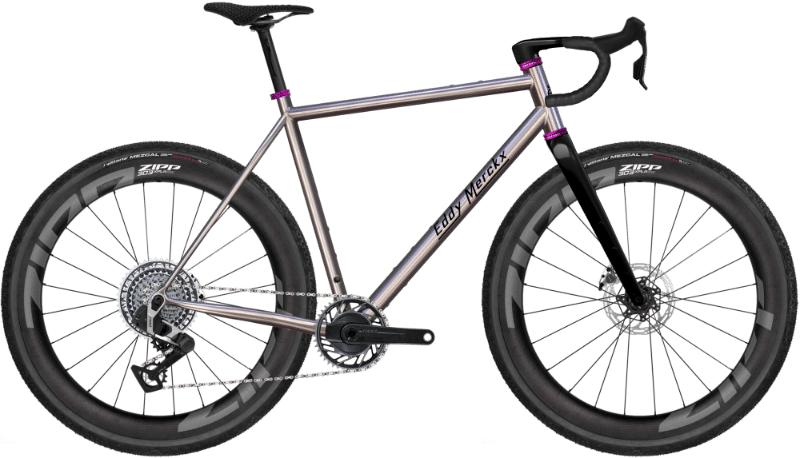

2026 Eddy Merckx Strasbourg Titanium geometry
Full frame geometry for the 2026 Eddy Merckx Strasbourg Titanium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 400 | 76 | 70.5 | 87 | 530 | 475 | 815 | 80 | 805 | 435 | 1037 |
| S | 543 | 404 | 75 | 70.5 | 112 | 550 | 500 | 840 | 80 | 829 | 435 | 1049 |
| M | 567 | 418 | 75 | 70.5 | 137 | 570 | 525 | 865 | 80 | 853 | 435 | 1071 |
| L | 592 | 431 | 75 | 70.5 | 164 | 590 | 550 | 890 | 80 | 878 | 435 | 1093 |
| XL | 614 | 451 | 75 | 70.5 | 187 | 615 | 575 | 915 | 80 | 900 | 435 | 1120 |
All measurements in millimetres unless marked (°) for angles.
