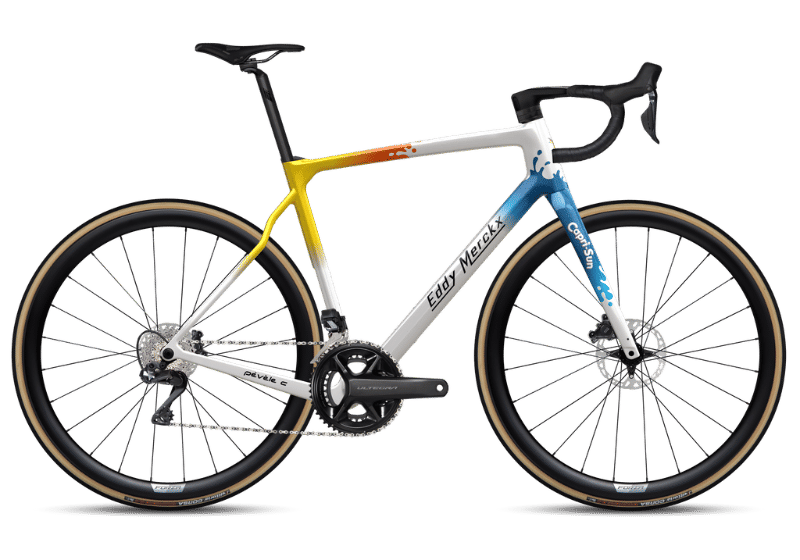

2025 Eddy Merckx Pévèle Carbon geometry
Full frame geometry for the 2025 Eddy Merckx Pévèle Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 | 375 | 74.5 | 71.5 | 115 | 525 | 470 | 478 | 73 | 420 | 993 |
| S | 563 | 383 | 74 | 72 | 140 | 545 | 500 | 509 | 73 | 420 | 1005 |
| M | 587 | 391 | 73.5 | 72 | 165 | 565 | 520 | 535 | 73 | 420 | 1021 |
| L | 614 | 403 | 73.5 | 72 | 195 | 585 | 545 | 562 | 71 | 420 | 1043 |
| XL | 633 | 412 | 73 | 72 | 215 | 605 | 570 | 578 | 71 | 420 | 1058 |
All measurements in millimetres unless marked (°) for angles.
