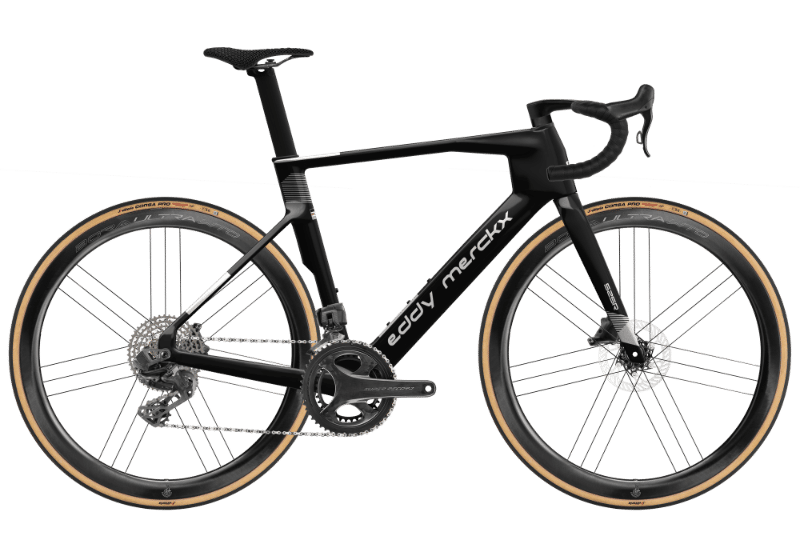

2027 Eddy Merckx 525R geometry
Full frame geometry for the 2027 Eddy Merckx 525R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 377 | 74.5 | 73 | 125 | 525 | 480 | 698 | 75 | 407 | 964 | 45 |
| S | 550 | 398 | 75 | 73 | 140 | 545 | 495 | 713 | 75 | 407 | 990 | 45 |
| M | 569 | 413 | 75 | 73 | 160 | 565 | 515 | 732 | 75 | 407 | 1011 | 45 |
| L | 593 | 437 | 76 | 73 | 185 | 585 | 540 | 756 | 75 | 407 | 1043 | 45 |
All measurements in millimetres unless marked (°) for angles.
