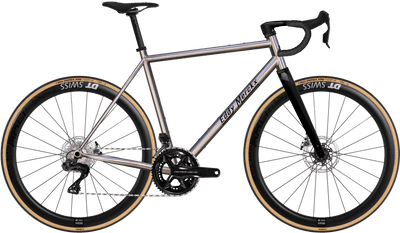

2026 Eddy Merckx Corsa Pévèle Titanium geometry
Full frame geometry for the 2026 Eddy Merckx Corsa Pévèle Titanium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 539 | 375 | 74.5 | 71.5 | 87 | 525 | 495 | 785 | 75 | 824 | 420 | 993 |
| S | 563 | 383 | 74 | 72 | 112 | 545 | 525 | 815 | 73 | 850 | 420 | 1005 |
| M | 586 | 391 | 73.5 | 72 | 137 | 565 | 545 | 835 | 73 | 873 | 420 | 1021 |
| L | 613 | 403 | 73.5 | 72 | 167 | 585 | 570 | 860 | 71 | 902 | 420 | 1043 |
| XL | 632 | 411 | 73 | 72 | 187 | 605 | 595 | 885 | 71 | 921 | 420 | 1057 |
All measurements in millimetres unless marked (°) for angles.
