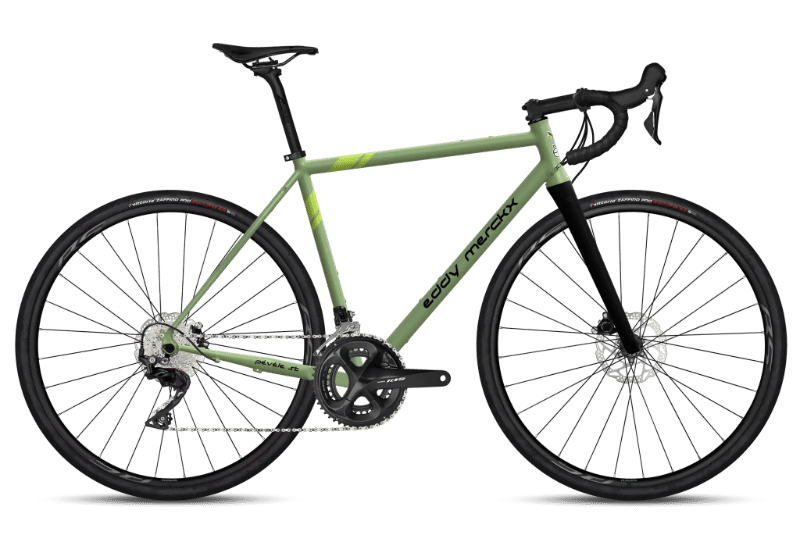

2025 Eddy Merckx Pévèle Steel geometry
Full frame geometry for the 2025 Eddy Merckx Pévèle Steel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 533 | 372 | 74 | 71 | 105 | 525 | 470 | 425 | 1003 | 72 |
| S | 552 | 377 | 74 | 71.5 | 125 | 535 | 495 | 425 | 1010 | 70 |
| M | 572 | 380 | 73.5 | 72 | 145 | 550 | 520 | 425 | 1015 | 73 |
| L | 597 | 388 | 73.5 | 72 | 170 | 565 | 545 | 425 | 1031 | 71 |
| XL | 616 | 398 | 73.5 | 72 | 190 | 580 | 570 | 425 | 1047 | 71 |
All measurements in millimetres unless marked (°) for angles.
