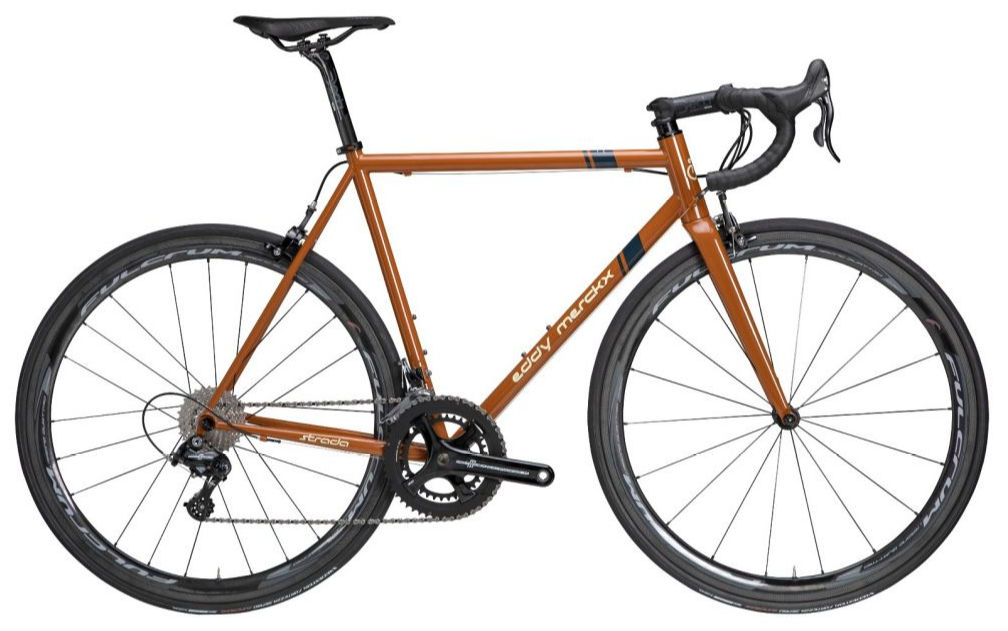

2019 Eddy Merckx Strada geometry
Full frame geometry for the 2019 Eddy Merckx Strada, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 378 | 74 | 72 | 126 | 528 | 480 | 778 | 68 | 577 | 408 | 975 |
| S | 550 | 384 | 73.5 | 73 | 152 | 547 | 510 | 809 | 66 | 583 | 408 | 982 |
| M | 576 | 390 | 73 | 73.5 | 177 | 566 | 540 | 838 | 66 | 592 | 410 | 993 |
| L | 601 | 396 | 72.5 | 73.5 | 205 | 585 | 570 | 869 | 64 | 605 | 410 | 1007 |
| XL | 626 | 402 | 72.5 | 74 | 230 | 600 | 600 | 898 | 64 | 614 | 410 | 1016 |
All measurements in millimetres unless marked (°) for angles.
