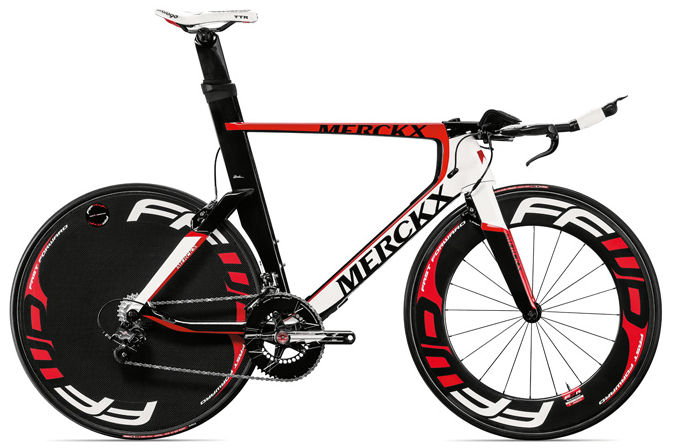

2014 Eddy Merckx St Jean Demonts73 geometry
Full frame geometry for the 2014 Eddy Merckx St Jean Demonts73, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 491 | 388 | 75 | 71 | 101 | 520 | 710 | 879 | 60 | 582 | 390 | 964 | 43 | 70 |
| S | 510 | 403 | 75 | 71 | 121 | 540 | 740 | 904 | 60 | 603 | 390 | 985 | 43 | 70 |
| M | 530 | 422 | 75 | 72 | 140 | 564 | 770 | 930 | 60 | 621 | 390 | 1003 | 43 | 63 |
| L | 556 | 439 | 75 | 72 | 165 | 588 | 800 | 958 | 60 | 644 | 390 | 1027 | 43 | 63 |
| XL | 575 | 455 | 75 | 72 | 185 | 609 | 830 | 983 | 60 | 665 | 390 | 1052 | 43 | 63 |
All measurements in millimetres unless marked (°) for angles.
