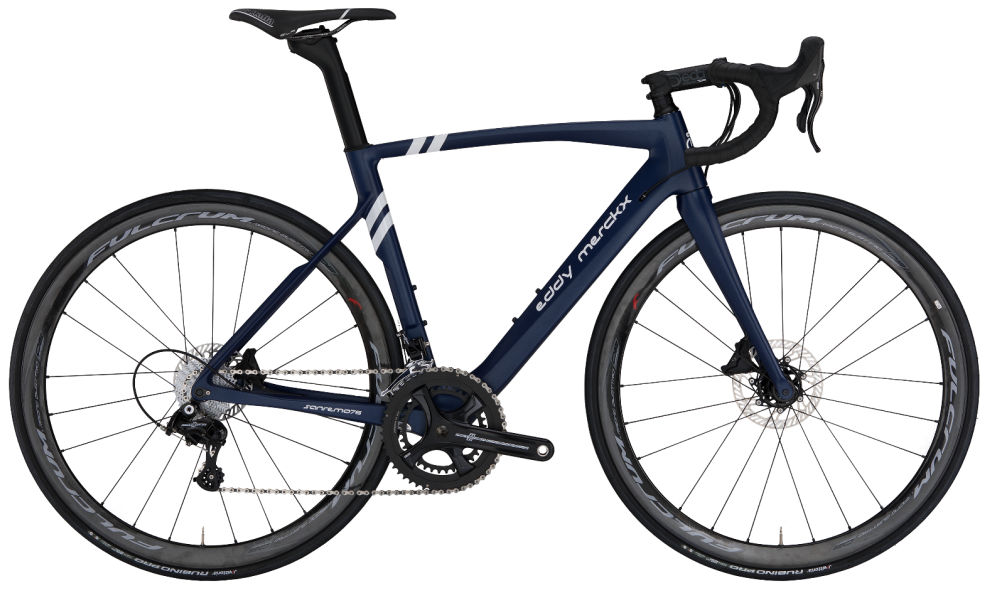

2019 Eddy Merckx San Remo76 Disc MKII geometry
Full frame geometry for the 2019 Eddy Merckx San Remo76 Disc MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 367 | 74 | 71.2 | 104 | 513 | 460 | 759 | 70 | 564 | 408 | 962 |
| S | 520 | 374 | 74 | 71.6 | 119 | 525 | 480 | 774 | 70 | 574 | 408 | 972 |
| M | 537 | 381 | 73.5 | 72 | 136 | 541 | 500 | 794 | 69 | 583 | 409 | 982 |
| L | 555 | 389 | 73.5 | 72.4 | 154 | 554 | 520 | 814 | 69 | 592 | 409 | 991 |
| XL | 574 | 397 | 73 | 72.8 | 173 | 573 | 540 | 835 | 68 | 603 | 410 | 1003 |
All measurements in millimetres unless marked (°) for angles.
