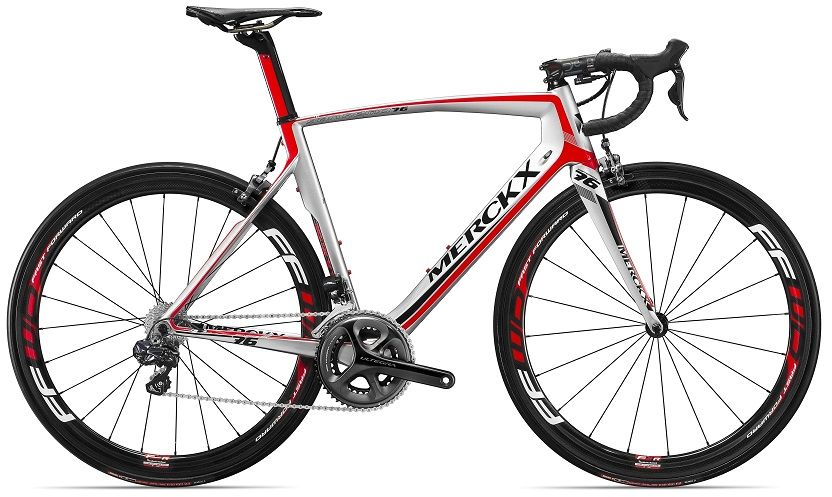

2014 Eddy Merckx San Remo 76 MKI geometry
Full frame geometry for the 2014 Eddy Merckx San Remo 76 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 491 | 369 | 73.6 | 69.7 | 100 | 518 | 450 | 736 | 72 | 575 | 408 | 973 | 43 | 78 |
| 50 | 511 | 383 | 71.7 | 71.3 | 114 | 541 | 470 | 760 | 71 | 582 | 408 | 980 | 43 | 68 |
| 53 | 533 | 389 | 72.7 | 71.7 | 137 | 560 | 502 | 788 | 70 | 592 | 408 | 990 | 43 | 66 |
| 56 | 556 | 396 | 72 | 72.4 | 160 | 576 | 518 | 809 | 69 | 599 | 410 | 999 | 43 | 61 |
| 59 | 580 | 403 | 71.6 | 73 | 182 | 597 | 549 | 838 | 69 | 608 | 410 | 1009 | 43 | 58 |
| 61 | 599 | 413 | 70.9 | 73.5 | 200 | 618 | 573 | 862 | 69 | 618 | 410 | 1019 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
