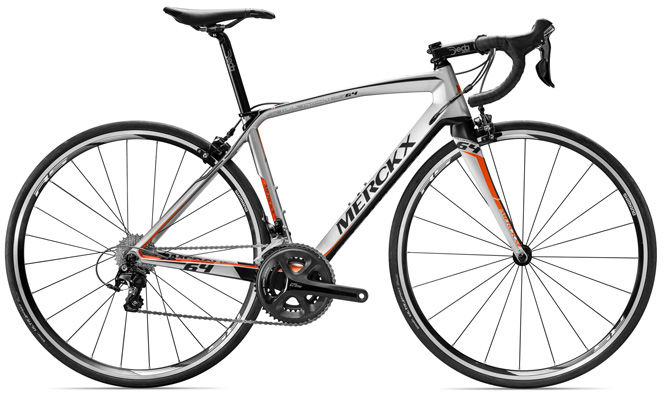

2016 Eddy Merckx Sallanches 64 geometry
Full frame geometry for the 2016 Eddy Merckx Sallanches 64, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 366 | 74.4 | 71.4 | 121 | 513 | 412 | 730 | 71 | 567 | 408 | 964 | 43 | 68 |
| S | 541 | 372 | 73.9 | 71.8 | 143 | 529 | 442 | 758 | 71 | 576 | 408 | 973 | 43 | 65 |
| M | 562 | 376 | 73.4 | 72.2 | 165 | 545 | 472 | 785 | 70 | 584 | 408 | 982 | 43 | 63 |
| L | 583 | 381 | 72.9 | 73 | 187 | 561 | 502 | 813 | 69 | 592 | 410 | 990 | 43 | 58 |
| XL | 601 | 388 | 72.4 | 73 | 204 | 578 | 532 | 839 | 69 | 599 | 410 | 999 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
