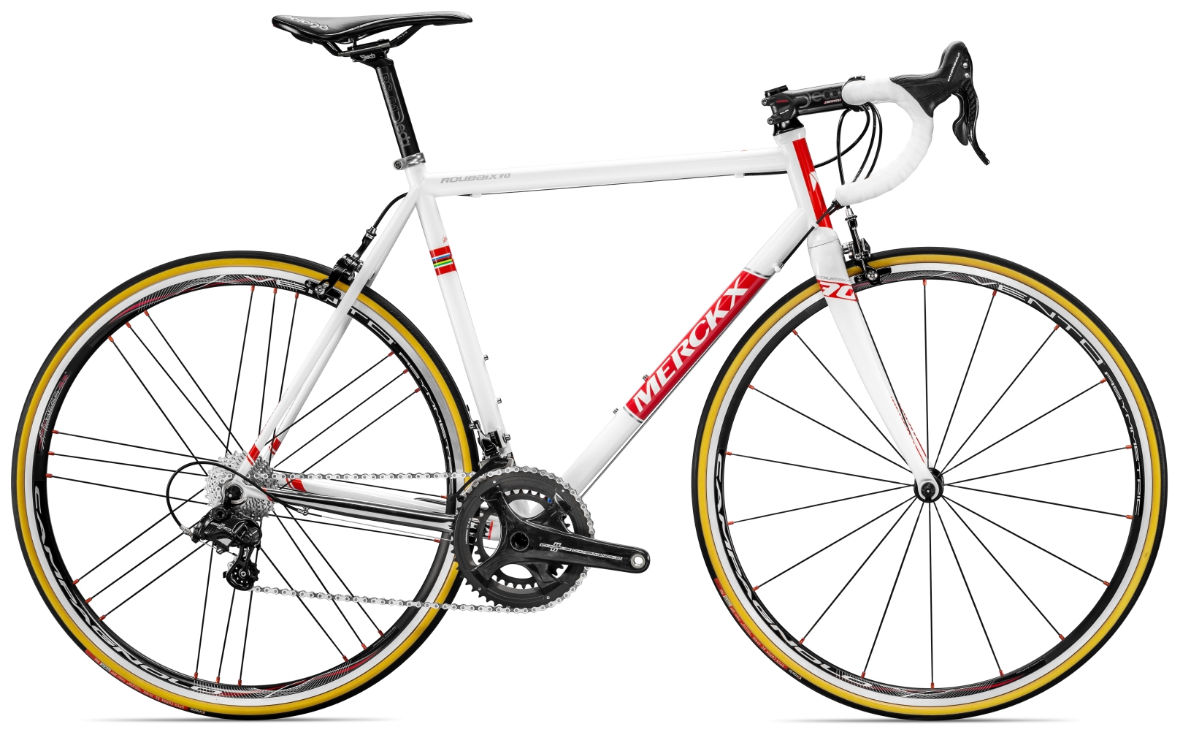

2016 Eddy Merckx Roubaix 70 geometry
Full frame geometry for the 2016 Eddy Merckx Roubaix 70, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 505 | 355 | 74.5 | 71.5 | 107 | 497 | 490 | 762 | 71 | 550 | 408 | 947 | 43 | 66 |
| XS | 532 | 365 | 74.5 | 71.5 | 136 | 514 | 520 | 791 | 71 | 569 | 408 | 967 | 43 | 66 |
| S | 559 | 375 | 74 | 72 | 165 | 537 | 540 | 818 | 69 | 584 | 409 | 983 | 43 | 63 |
| M | 576 | 384 | 73.5 | 72.5 | 180 | 555 | 560 | 837 | 69 | 593 | 409 | 992 | 43 | 60 |
| L | 592 | 392 | 73 | 73 | 195 | 573 | 580 | 856 | 69 | 601 | 409 | 999 | 43 | 57 |
| XL | 606 | 402 | 73 | 73 | 215 | 588 | 600 | 876 | 67 | 616 | 410 | 1015 | 43 | 57 |
| XXL | 633 | 415 | 72.5 | 73.5 | 238 | 614 | 630 | 906 | 67 | 631 | 410 | 1032 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
