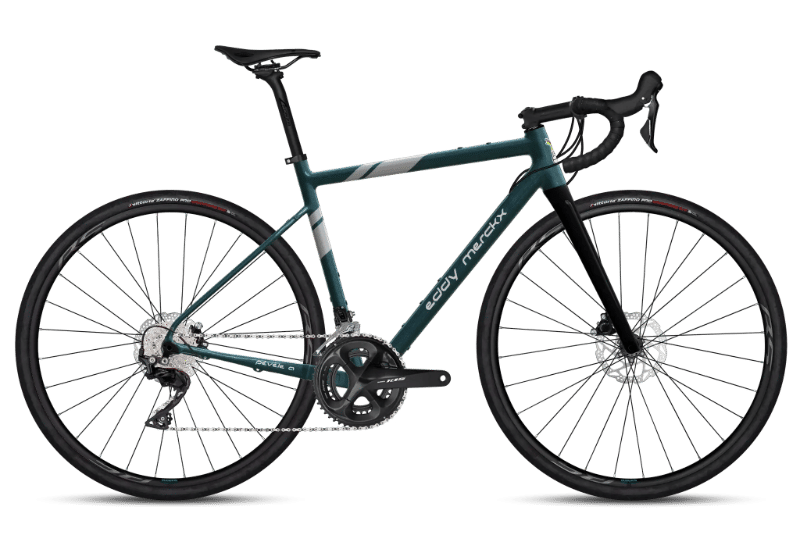

2024 Eddy Merckx Pévèle Aluminium geometry
Full frame geometry for the 2024 Eddy Merckx Pévèle Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 543 | 374 | 74.5 | 70.5 | 115 | 525 | 420 | 478 | 430 | 1018 | 73 |
| S | 563 | 379 | 74 | 70.5 | 135 | 540 | 465 | 509 | 430 | 1029 | 73 |
| M | 587 | 386 | 73 | 71 | 160 | 565 | 495 | 535 | 430 | 1039 | 73 |
| L | 616 | 397 | 73 | 71 | 190 | 585 | 525 | 562 | 430 | 1060 | 73 |
| XL | 641 | 404 | 73 | 71 | 215 | 600 | 555 | 578 | 430 | 1071 | 73 |
All measurements in millimetres unless marked (°) for angles.
