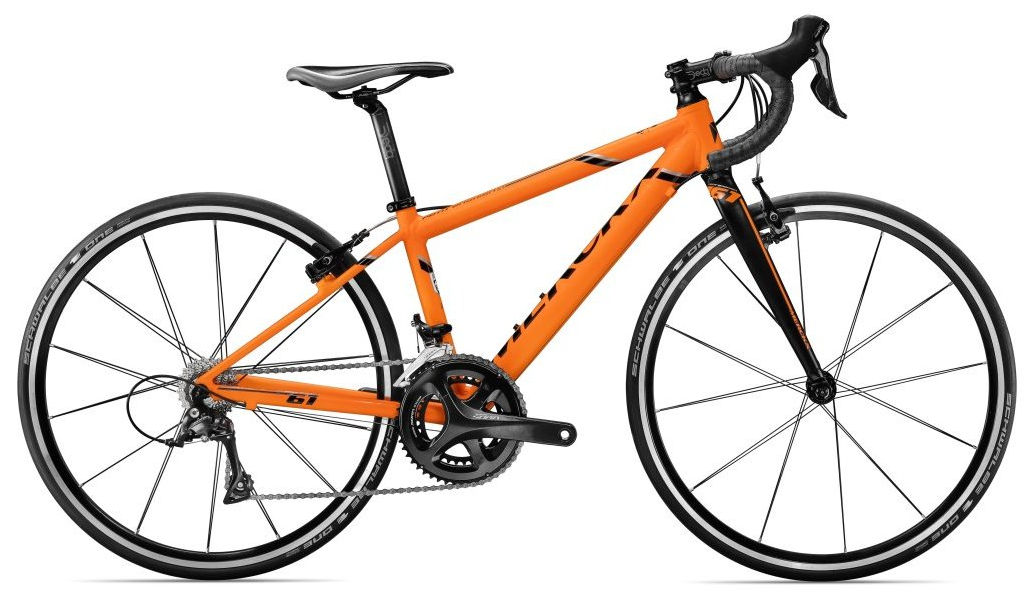

2017 Eddy Merckx Petit Enghien 61 geometry
Full frame geometry for the 2017 Eddy Merckx Petit Enghien 61, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 490 | 359 | 74.5 | 71 | 105 | 495 | 350 | 675 | 48 | 554 | 400 | 919 | 41 | 61 |
All measurements in millimetres unless marked (°) for angles.
