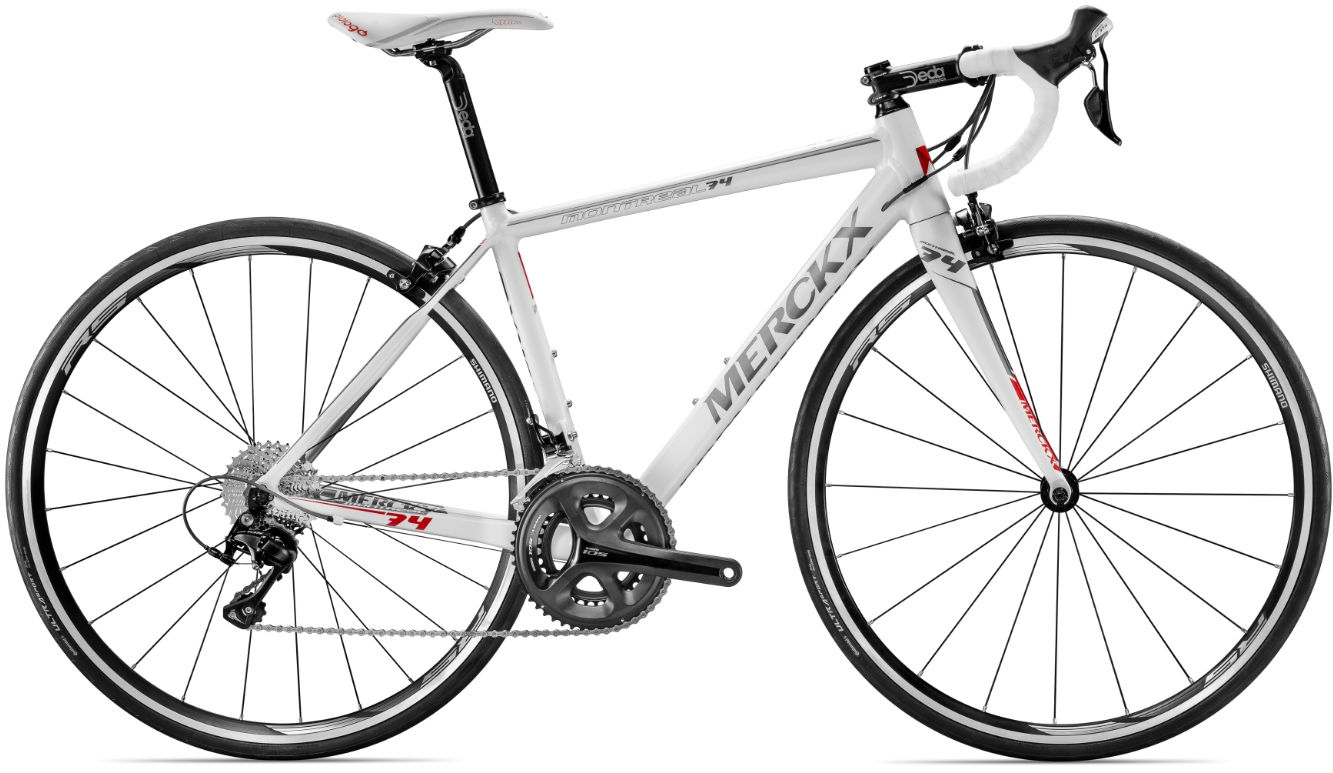

2016 Eddy Merckx Montreal 74 geometry
Full frame geometry for the 2016 Eddy Merckx Montreal 74, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 506 | 353 | 75 | 70 | 110 | 492 | 385 | 708 | 71 | 562 | 408 | 959 | 43 | 76 |
| XS | 524 | 358 | 74.5 | 70.4 | 128 | 506 | 415 | 734 | 70 | 569 | 408 | 967 | 43 | 73 |
| S | 545 | 364 | 74 | 70.9 | 149 | 523 | 445 | 760 | 70 | 579 | 410 | 978 | 43 | 70 |
| M | 568 | 370 | 74 | 71 | 174 | 535 | 475 | 788 | 69 | 591 | 410 | 991 | 43 | 70 |
| L | 583 | 375 | 74 | 71 | 189 | 549 | 505 | 811 | 69 | 606 | 410 | 1006 | 43 | 70 |
All measurements in millimetres unless marked (°) for angles.
