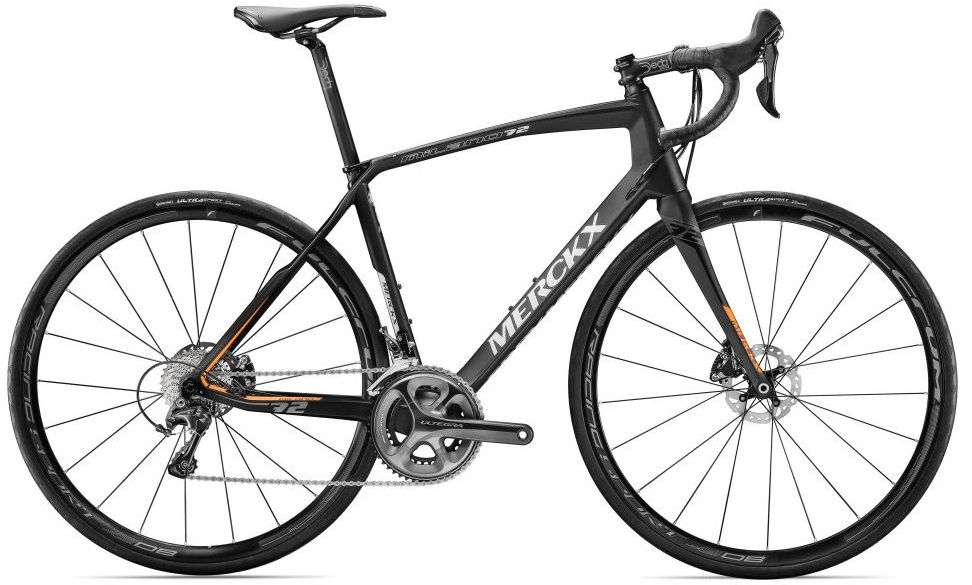

2017 Eddy Merckx Milano 72 Disc geometry
Full frame geometry for the 2017 Eddy Merckx Milano 72 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 514 | 353 | 75 | 70.4 | 121 | 494 | 395 | 719 | 71 | 561 | 408 | 959 | 43 | 74 |
| XS | 533 | 358 | 74.5 | 70.9 | 140 | 509 | 410 | 737 | 70 | 569 | 408 | 967 | 43 | 71 |
| S | 555 | 364 | 74 | 71.4 | 161 | 525 | 440 | 765 | 70 | 577 | 410 | 978 | 43 | 68 |
| M | 577 | 370 | 74 | 71.4 | 185 | 537 | 470 | 792 | 69 | 590 | 410 | 991 | 43 | 68 |
| L | 597 | 375 | 74 | 71.4 | 206 | 548 | 500 | 818 | 69 | 602 | 410 | 1002 | 43 | 68 |
All measurements in millimetres unless marked (°) for angles.
