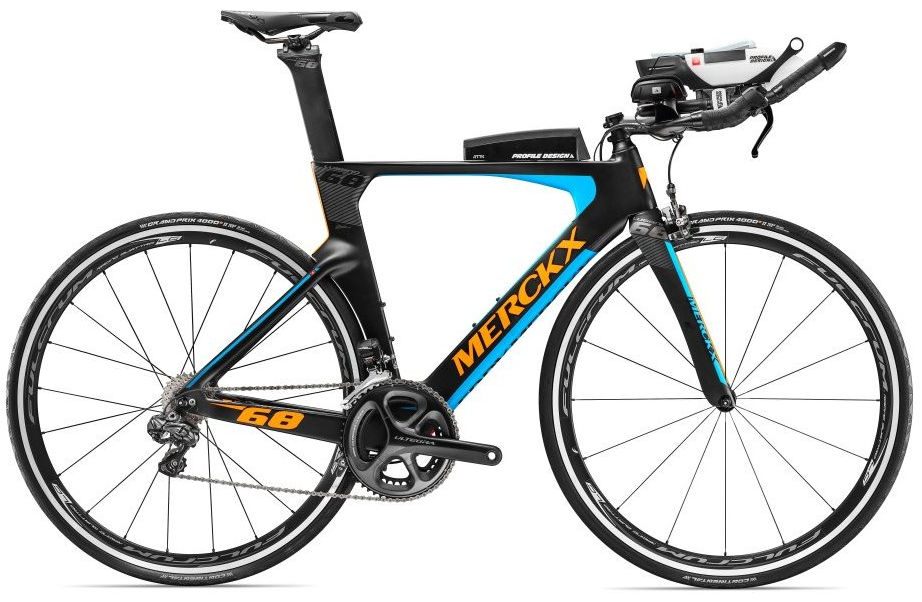

2016 Eddy Merckx Lugano 68 geometry
Full frame geometry for the 2016 Eddy Merckx Lugano 68, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 497 | 392 | 76 | 72 | 85 | 519 | 500 | 762 | 70 | 581 | 399 | 969 | 43 | 63 |
| M | 519 | 408 | 76 | 73 | 115 | 539 | 521 | 784 | 70 | 594 | 399 | 983 | 43 | 57 |
| L | 538 | 423 | 76 | 73 | 135 | 559 | 543 | 805 | 70 | 615 | 399 | 1004 | 43 | 57 |
| XL | 562 | 440 | 76 | 73 | 160 | 581 | 567 | 829 | 70 | 639 | 399 | 1028 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
