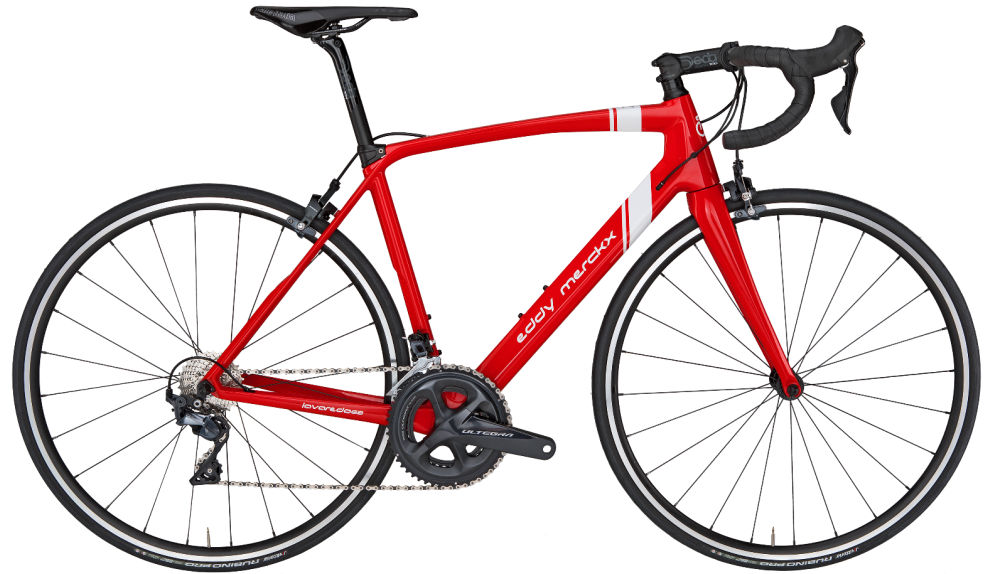

2019 Eddy Merckx Lavaredo68 geometry
Full frame geometry for the 2019 Eddy Merckx Lavaredo68, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 370 | 74 | 71.2 | 114 | 517 | 435 | 747 | 71 | 571 | 408 | 968 |
| S | 538 | 377 | 73.5 | 71.7 | 136 | 536 | 465 | 774 | 71 | 581 | 408 | 978 |
| M | 560 | 383 | 73.5 | 72.2 | 159 | 549 | 495 | 802 | 70 | 589 | 408 | 987 |
| L | 582 | 389 | 73.5 | 72.7 | 181 | 561 | 525 | 830 | 69 | 598 | 410 | 998 |
| XL | 607 | 396 | 73 | 73.2 | 205 | 581 | 555 | 859 | 69 | 607 | 410 | 1007 |
All measurements in millimetres unless marked (°) for angles.
