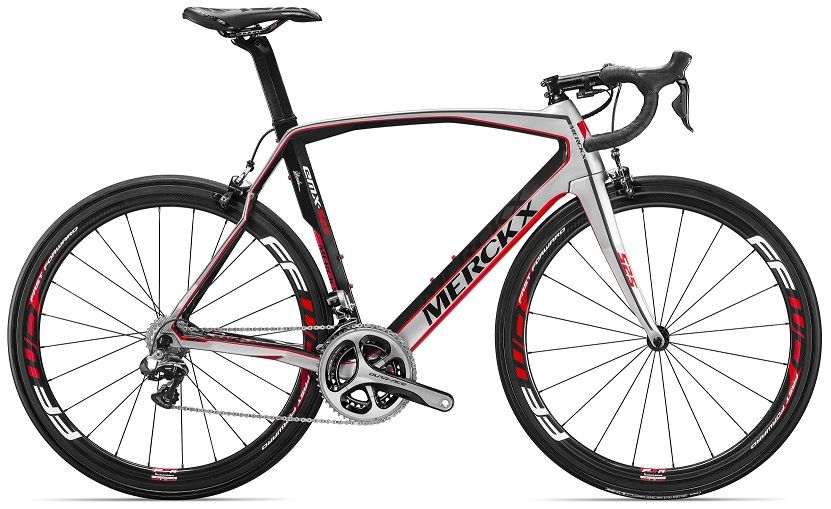

2014 Eddy Merckx EMX 525 geometry
Full frame geometry for the 2014 Eddy Merckx EMX 525, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 501 | 378 | 73.5 | 71 | 105 | 526 | 485 | 759 | 71 | 577 | 408 | 974 | 43 | 70 |
| 50 | 511 | 383 | 73.1 | 71.3 | 114 | 637 | 495 | 769 | 71 | 582 | 408 | 979 | 43 | 68 |
| 52 | 526 | 387 | 72.9 | 71.7 | 129 | 552 | 510 | 785 | 71 | 587 | 408 | 985 | 43 | 65 |
| 54 | 541 | 392 | 72.3 | 72 | 145 | 565 | 525 | 803 | 69 | 595 | 410 | 1002 | 43 | 63 |
| 56 | 556 | 396 | 72.2 | 72.4 | 160 | 577 | 545 | 821 | 69 | 599 | 410 | 1006 | 43 | 61 |
| 58 | 571 | 401 | 71.8 | 72.7 | 174 | 588 | 555 | 835 | 69 | 606 | 412 | 1013 | 43 | 59 |
| 60 | 586 | 405 | 71.4 | 73.1 | 191 | 605 | 605 | 871 | 67 | 612 | 412 | 1014 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
