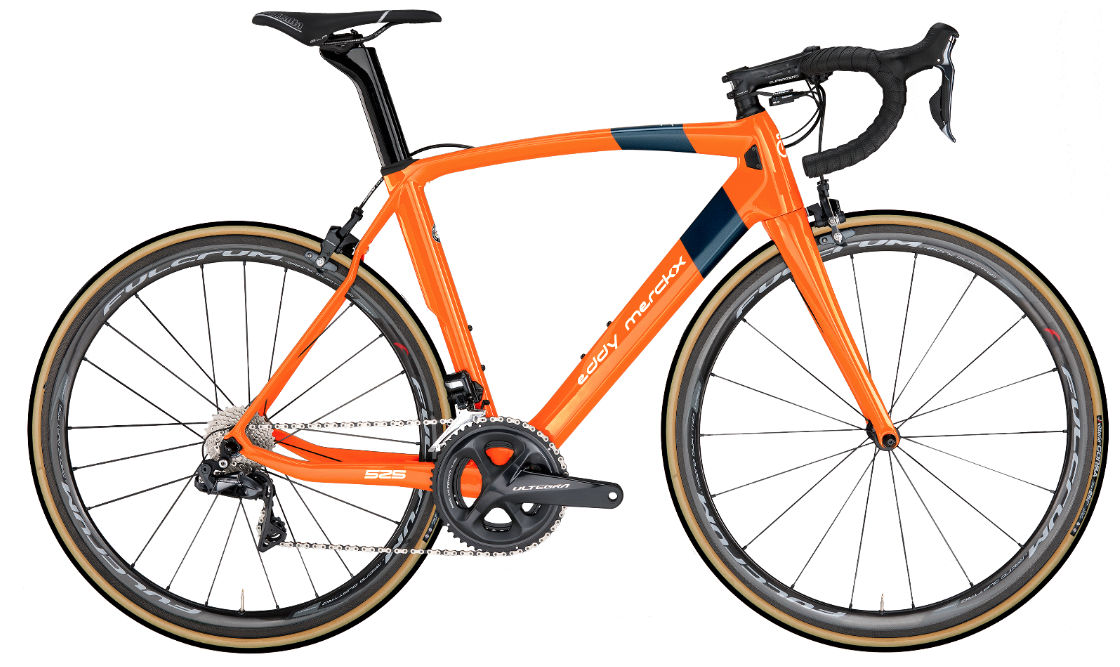

2019 Eddy Merckx EM525 Performance MKII geometry
Full frame geometry for the 2019 Eddy Merckx EM525 Performance MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 505 | 368 | 74 | 71.2 | 104 | 515 | 524 | 70 | 566 | 408 | 964 |
| XS | 520 | 375 | 74 | 71.7 | 118 | 526 | 532 | 70 | 569 | 408 | 967 |
| S | 535 | 382 | 73.5 | 72.2 | 133 | 541 | 540 | 69 | 576 | 408 | 974 |
| M | 550 | 388 | 73.5 | 72.7 | 147 | 551 | 548 | 69 | 587 | 409 | 986 |
| L | 566 | 395 | 73.5 | 73.2 | 162 | 563 | 556 | 69 | 594 | 409 | 993 |
| XL | 583 | 402 | 73 | 72.7 | 183 | 580 | 565 | 68 | 607 | 410 | 1007 |
| XXL | 599 | 409 | 73 | 73.2 | 198 | 592 | 573 | 68 | 613 | 410 | 1014 |
All measurements in millimetres unless marked (°) for angles.
