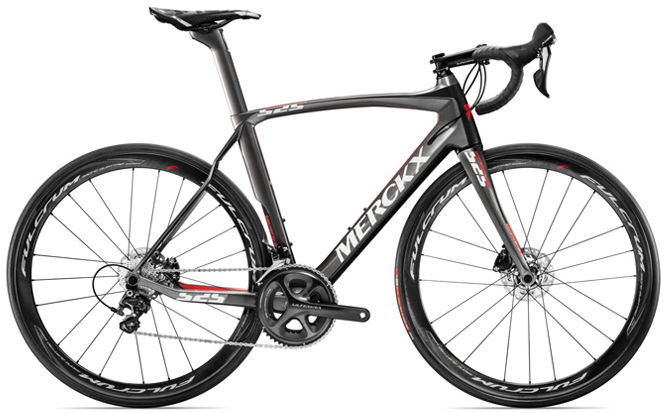

2016 Eddy Merckx EM525 Endurance Disc MKI geometry
Full frame geometry for the 2016 Eddy Merckx EM525 Endurance Disc MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 516 | 365 | 74 | 71.2 | 118 | 515 | 450 | 750 | 70 | 566 | 408 | 964 | 43 | 69 |
| XS | 537 | 370 | 74 | 71.7 | 134 | 526 | 470 | 771 | 70 | 574 | 408 | 967 | 43 | 66 |
| S | 557 | 375 | 73.5 | 72.2 | 155 | 541 | 490 | 793 | 69 | 581 | 408 | 974 | 43 | 63 |
| M | 576 | 380 | 73.5 | 72.7 | 174 | 551 | 505 | 811 | 69 | 587 | 409 | 986 | 43 | 60 |
| L | 597 | 386 | 73.5 | 73.2 | 192 | 563 | 525 | 831 | 69 | 594 | 409 | 993 | 43 | 57 |
| XL | 618 | 391 | 73 | 72.7 | 217 | 580 | 545 | 854 | 68 | 611 | 410 | 1007 | 43 | 60 |
| XXL | 639 | 398 | 73 | 73.2 | 237 | 592 | 565 | 875 | 68 | 618 | 410 | 1014 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
