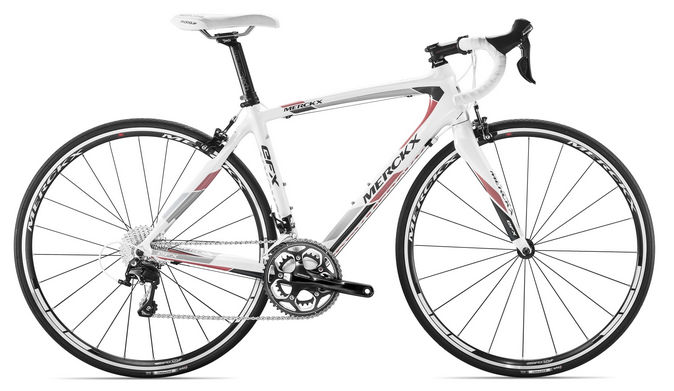

2014 Eddy Merckx EFX geometry
Full frame geometry for the 2014 Eddy Merckx EFX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 523 | 353 | 75 | 70.4 | 130 | 498 | 442 | 744 | 73 | 570 | 408 | 967 | 48 | 68 |
| 43 | 546 | 360 | 74.5 | 70.8 | 155 | 515 | 474 | 774 | 71 | 581 | 410 | 981 | 48 | 65 |
| 46 | 569 | 366 | 74 | 71.2 | 178 | 532 | 505 | 802 | 71 | 591 | 410 | 991 | 48 | 63 |
All measurements in millimetres unless marked (°) for angles.
