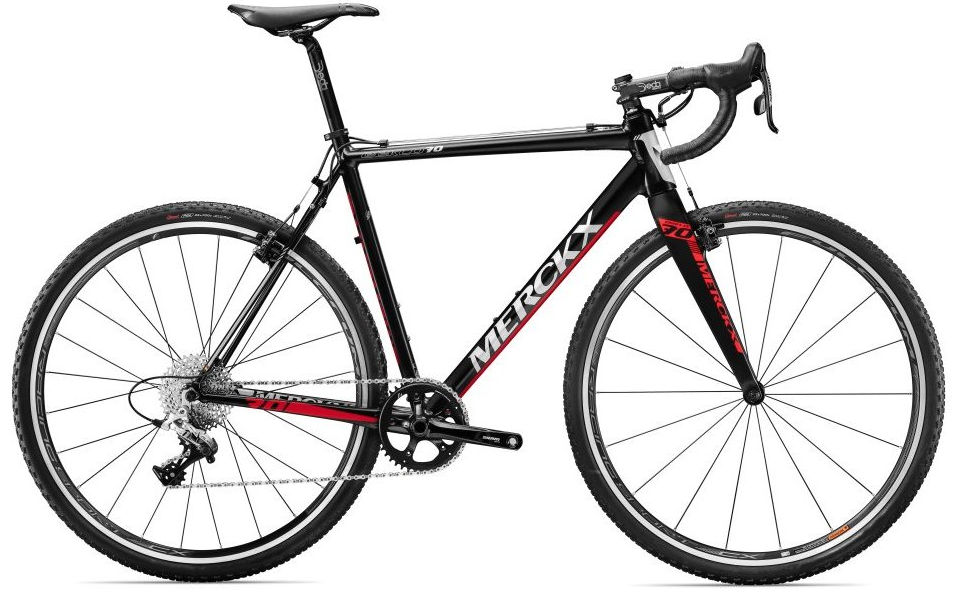

2017 Eddy Merckx Eeklo 70 Alloy geometry
Full frame geometry for the 2017 Eddy Merckx Eeklo 70 Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 510 | 378 | 75.5 | 70.5 | 100 | 510 | 480 | 786 | 53 | 589 | 425 | 1009 | 45 | 74 |
| 50 | 525 | 383 | 75 | 70.5 | 115 | 525 | 500 | 805 | 53 | 601 | 425 | 1021 | 45 | 74 |
| 52 | 538 | 386 | 74.5 | 71 | 125 | 535 | 520 | 820 | 55 | 602 | 425 | 1021 | 45 | 71 |
| 54 | 549 | 388 | 74 | 71.5 | 135 | 545 | 540 | 837 | 55 | 603 | 425 | 1022 | 45 | 68 |
| 56 | 562 | 393 | 73.5 | 72 | 145 | 560 | 560 | 852 | 57 | 608 | 425 | 1027 | 45 | 64 |
| 58 | 578 | 398 | 73 | 72.5 | 160 | 575 | 580 | 871 | 57 | 612 | 425 | 1031 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
